Phoenix Contact 1854022 Contact insert VC-AMS 8
Normally In Stock
Code: 151968
Phoenix Contact 1854022 - Contact insert - VARIOCON - 8 Positions - CuMg - 28 AWG - Light gray - 10 Amp - 160 V - Screw Connection
Condition: New
Usually ships Same Day or Next Day $15.52
Sale Price
$12.93
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

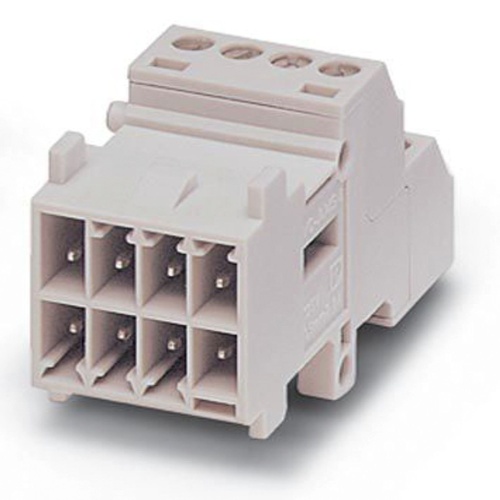

Phoenix Contact 1854022 The VARIOCON contact insert is available in a light gray color and features eight positions for connectors. It has a minimum conductor cross section of 0.14 mm2 and a maximum of 1.5 mm2, with rated voltage and current capabilities of 160 volts and 10 amps respectively. The contact connection type is pin-based and can only be connected or disconnected when the device is under no load due to screw connections.
Specifications
Connector Amperage
10 Amp
Connector Color
Light Gray
Component
Contact Insert
Manufacturer
Phoenix Contact
Connector Material
Cumg
Number of Positions
8
Connector Voltage
160 Volt
Features
Proven COMBICON technology
Universal connection
Can be keyed to prevent incorrect connection
