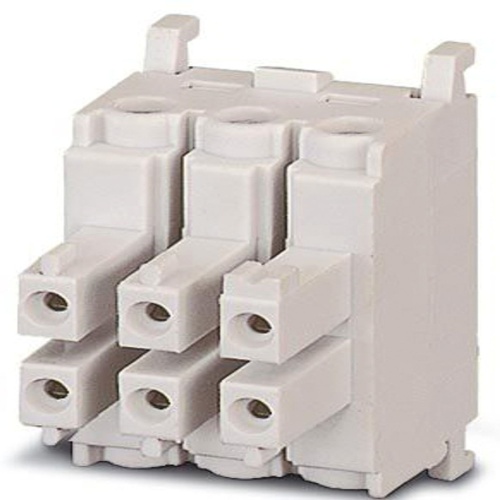

Phoenix Contact 1583526 Contact insert VC-TFS 6-PE
Normally In Stock
Code: 151963
Phoenix Contact 1583526 - Contact insert - VARIOCON - 6 Positions - CuNi3SiMg - 28 AWG - Light gray - 10 Amp - 320 V - Screw Connection
Condition: New
Usually ships Same Day or Next Day $12.60
Sale Price
$10.50
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1583526 A contact insert with a light gray color is used for various articles and comes in six different positions. It has a minimum conductor cross-sectional area of 0.14 mm² and a maximum of 1.5 mm². The rated voltage is 250 volts, while the rated current is 10 amperes. This contact insert features a screw connection method with a socket type connection, and connectors can only be connected or disconnected when there is no load on them.
Specifications
Connector Amperage
10 Amp
Connector Color
Light Gray
Component
Contact Insert
Manufacturer
Phoenix Contact
Number of Positions
6
Connector Material
Cuni3simg
Connector Voltage
320 Volt
Features
Proven COMBICON technology
Universal connection
Can be keyed to prevent incorrect connection
