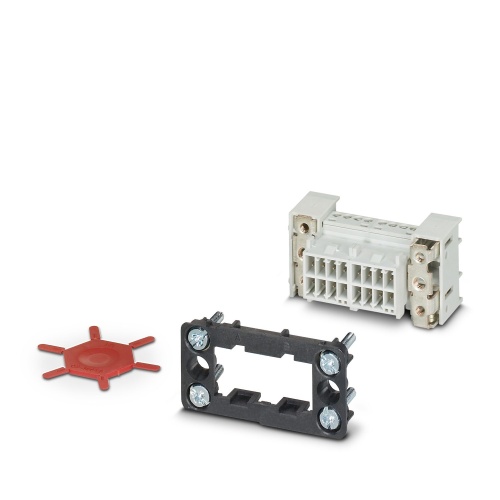

Phoenix Contact 1607394 Contact insert set VC-AR1/2M-S88-SET
Normally In Stock
Code: 151940
Phoenix Contact 1607394 - VARIOCON - 16 Positions - CuZn - 28 AWG - 10 Amp - 160 V
Condition: New
Usually ships Same Day or Next Day $89.56
Sale Price
$74.63
MUST BUY IN PACKS OF 5
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1607394 A contact insert set with a design of VC1 is available for purchase, featuring 16 positions to accommodate a variety of applications, including VARIOCON. The conductor cross-section range spans from 0.14 mm2 to 1.5 mm2, while the rated voltage and current capabilities are 160 volts and 10 amperes respectively. Connectors in this set can only be connected or disconnected when the system is not under load due to its pin-based connection type.
Specifications
Connector Amperage
10 Amp
Connector Size
VC1
Connector Material
Cuzn
Component
Contact Insert
Manufacturer
Phoenix Contact
Number of Positions
16
Sub Component
Contact Insert Set
Connector Voltage
160 Volt
Features
Proven COMBICON technology
Universal connection
Can be keyed to prevent incorrect connection
