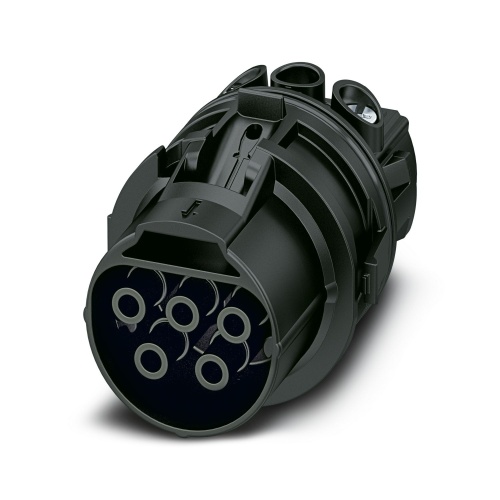

Phoenix Contact 1070197 Contact carrier PRC 5-HEAD-FS6-1
Normally In Stock
Code: 151868
Phoenix Contact 1070197 - 5 Positions - Cu Alloy - Black - 35 Amp - IP66 , IP68 - Screw Connection - Snap-In Locking
Condition: New
Usually ships Same Day or Next Day$8.27
Sale Price
$6.89
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1070197 For this contact carrier, articles can be ordered including PRC 35 designs that release with either a tool or by hand; they come in black color and have five positions available for use. The minimum conductor cross section is 1.5 mm2, while the maximum is 6 mm2, and it has a rated voltage of 690 V AC and a rated current of 35 A. The connection method is screw-based with a socket type contact insert that doesn't require a connector housing; please refer to the accessories list for the correct connector housings to be ordered accordingly.
Specifications
Connector Color
Black
Connector Amperage
35 Amp
Connector Material
Cu Alloy
Connector Material
EPDM
Component
Contact Insert
Connector protection
IP66
Connector protection
IP68
Manufacturer
Phoenix Contact
Number of Positions
5
Sub Component
Contact Carrier
Features
Versatile interfaces with straight and angled connector housings
Universal accommodation of existing connector heads with screw connection technology
Modular system for optimized storage
Locking mechanism can be unlocked manually or using a tool
Ideal for indoor and outdoor use due to weatherproof materials

Code: 151868
Phoenix Contact 1070197 Contact carrier PRC 5-HEAD-FS6-1
$8.27
Sale Price
$6.89
