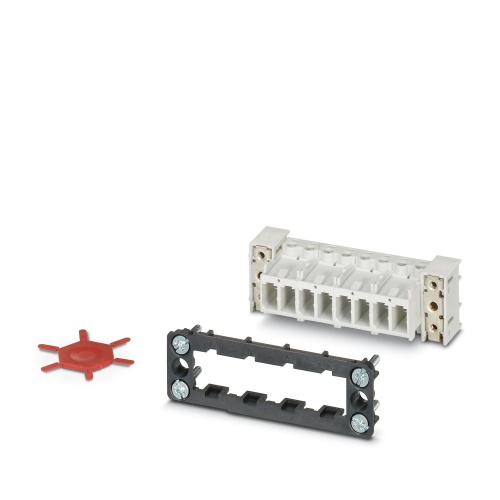

Phoenix Contact 1607322 Contact insert set VC-AR3/4M-S2222-SET
Normally In Stock
Code: 151785
Phoenix Contact 1607322 - VARIOCON - 8 Positions - CuZn - 30 AWG - 20 Amp - 400 V
Condition: New
Usually ships Same Day or Next Day $63.68
Sale Price
$53.07
MUST BUY IN PACKS OF 5
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1607322 The contact insert set is designed for use with VARIOCON products and features a VC3 design, accommodating up to eight positions, with conductor cross sections ranging from 0.2 mm² to 4 mm². It has a rated voltage of 400 volts and a maximum current capacity of 20 A, utilizing a pin-based connection method, where connectors can only be connected or disconnected under no load conditions.
Specifications
Connector Amperage
20 Amp
Connector Size
VC3
Connector Material
Cuzn
Component
Contact Insert
Manufacturer
Phoenix Contact
Number of Positions
8
Sub Component
Contact Insert Set
Connector Voltage
400 Volt
Features
Proven COMBICON technology
Universal connection
Can be keyed to prevent incorrect connection
