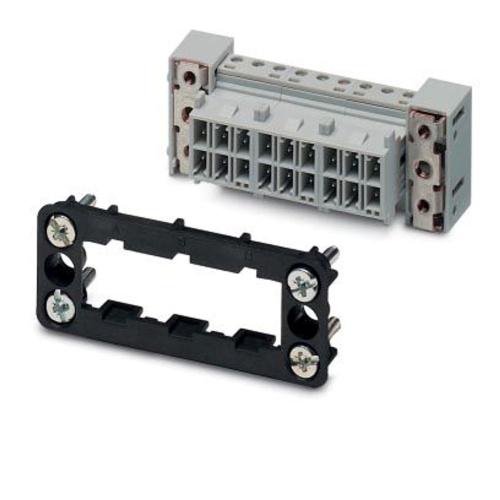

Phoenix Contact 1607359 Contact insert set VC-AR2/3M-S666-SET
Normally In Stock
Code: 151783
Phoenix Contact 1607359 - VARIOCON - 18 Positions - CuZn - 30 AWG - 10 Amp - 250 V
Condition: New
Usually ships Same Day or Next Day $88.79
Sale Price
$73.99
MUST BUY IN PACKS OF 5
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1607359 The contact insert set is designed with a specific range of articles from VARIOCON, featuring a VC2 design and accommodating 18 positions. The conductors have minimum cross-sections of 0.14 mm2 and maximum cross-sections of 1.5 mm2, while the rated voltage is 250 volts and the rated current is 10 amps. This set uses a pin connection type, with connectors allowed to be connected or disconnected only when there is no load on them.
Specifications
Connector Amperage
10 Amp
Connector Size
VC2
Connector Material
Cuzn
Component
Contact Insert
Manufacturer
Phoenix Contact
Number of Positions
18
Sub Component
Contact Insert Set
Connector Voltage
250 Volt
Features
Proven COMBICON technology
Universal connection
Can be keyed to prevent incorrect connection
