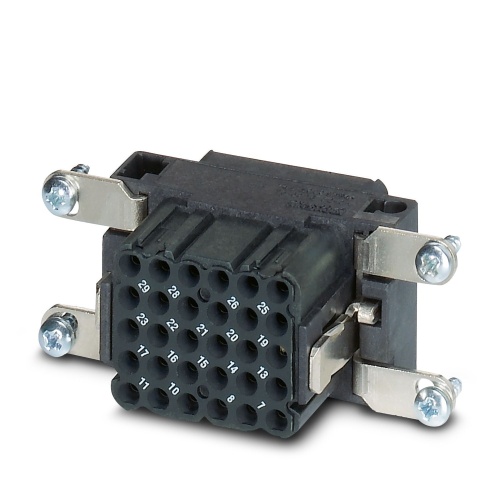

Phoenix Contact 1884791 Contact insert VC-D2-BU30-PE-R
Normally In Stock
Code: 151660
Phoenix Contact 1884791 - Contact insert - VARIOCON - 3 Positions - CuZn - 22 AWG - 10 Amp - Crimp Connection
Condition: New
Usually ships Same Day or Next Day $19.91
Sale Price
$16.59
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1884791 The contact insert, designed for use with the VC2 connector range, has three positions available and accommodates conductor cross-sections between 0.14 mm² and 1.5 mm². It is rated for a maximum voltage of 250 volts and a current capacity of up to 10 A, utilizing crimp connections and socket-style contacts that must be connected or disconnected under no load conditions.
Specifications
Connector Amperage
10 Amp
Connector Size
VC2
Connector Material
Cuzn
Component
Contact Insert
Manufacturer
Phoenix Contact
Number of Positions
3
Features
Pin and socket contacts can be used on both the plug and device sides
Contact carriers have two further capacitive PE contacts
The connection data of 250 V/10 A corresponds to that of the HEAVYCON DD series
Contact types meet the requirements of IEC 60352/DIN EN 60352
