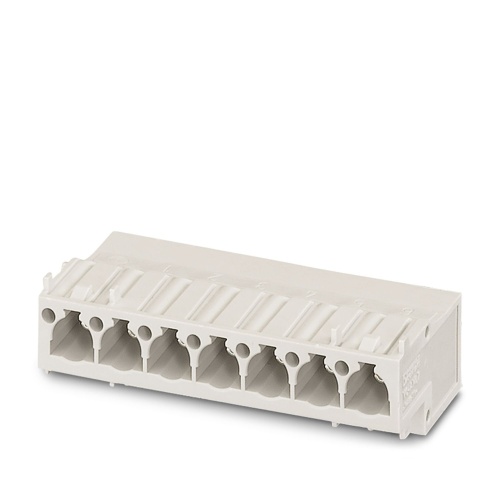

Phoenix Contact 1607537 Contact insert VC-AML 7
Normally In Stock
Code: 151603
Phoenix Contact 1607537 - Contact insert - VARIOCON - 7 Positions - E-Cu 58 - Light gray - 63 Amp - 1000 V - PCB Connection
Condition: New
Usually ships Same Day or Next Day $40.64
Sale Price
$33.87
MUST BUY IN PACKS OF 5
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1607537 The contact insert has a design marked as VC4 with a light gray color and is configured to accommodate seven positions, while it operates within a rated voltage of 690 volts and a maximum current capacity of 63 amps. Connection to the PCB requires a pin-based connection method, but this must be done when the system is under no load to avoid any issues.
Specifications
Connector Size
VC4
Connector Amperage
63 Amp
Connector Color
Light Gray
Component
Contact Insert
Manufacturer
Phoenix Contact
Number of Positions
7
Connector Material
E-Cu 58
Connector Voltage
1000 Volt
Features
Proven COMBICON technology
Direct PCB connection
Can be keyed to prevent incorrect connection
