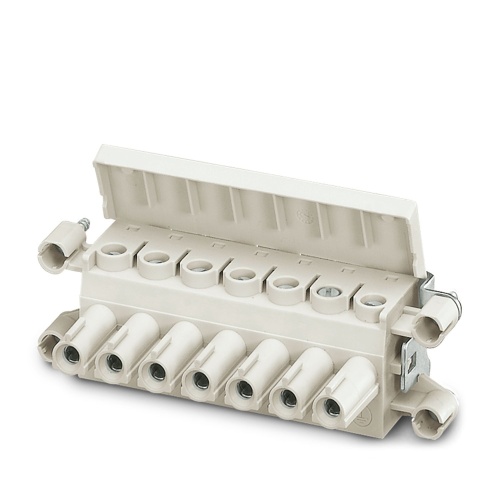

Phoenix Contact 1607481 Contact insert VC-TFS 7-PEA
Normally In Stock
Code: 151540
Phoenix Contact 1607481 - Contact insert - VARIOCON - 7 Positions - E-Cu 58 - 20 AWG - Light gray - 70 Amp - 1000 V - Screw Connection
Condition: New
Usually ships Same Day or Next Day $65.33
Sale Price
$54.44
MUST BUY IN PACKS OF 5
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1607481 The contact insert has a design of VC4 and is colored light gray, featuring seven positions, with minimum conductor cross section of 0.5 mm2 and maximum of 16 mm2. The rated current it can handle is 70 A and connects via a screw connection type socket that must only be connected or disconnected when the load on the system is zero.
Specifications
Connector Amperage
70 Amp
Connector Size
VC4
Connector Color
Light Gray
Component
Contact Insert
Manufacturer
Phoenix Contact
Number of Positions
7
Connector Material
E-Cu 58
Connector Voltage
1000 Volt
Features
Proven COMBICON technology
Universal connection
Can be keyed to prevent incorrect connection
