Code: 149734

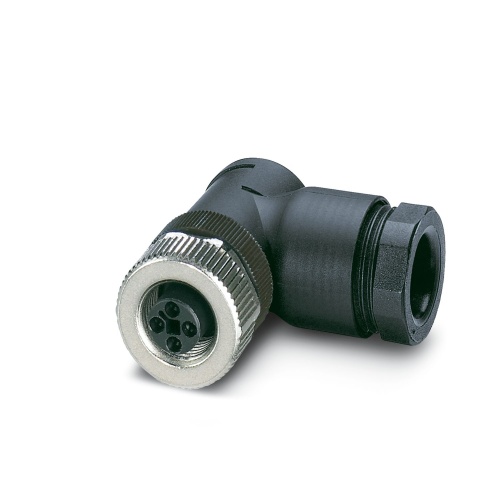

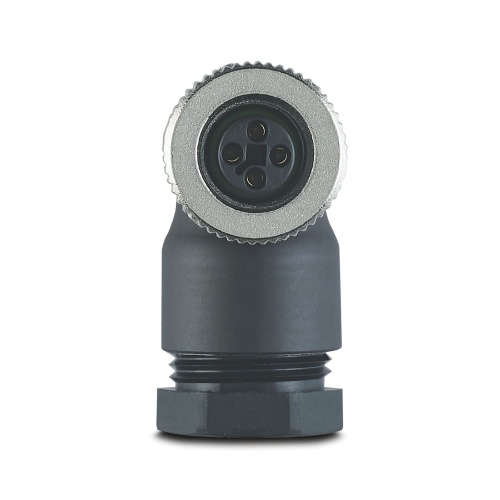

Phoenix Contact 1408989 Power connector SACC-M12FRT-4CON-PG11-M
Normally In Stock
Phoenix Contact 1408989 - Power connector - 4 Positions - CuZn - 18 AWG - IP67 - Screw Connection
Condition: New
Usually ships Same Day or Next Day$31.88
Sale Price
$26.57
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

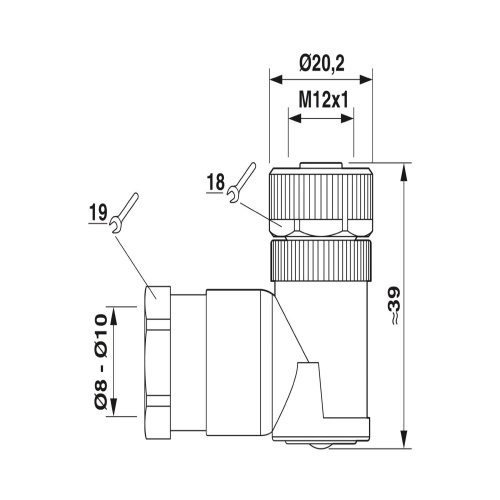

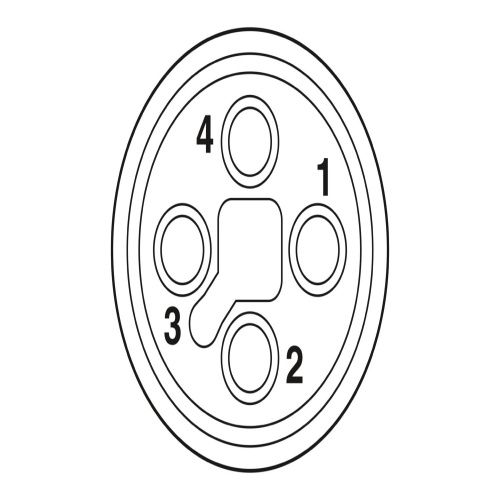

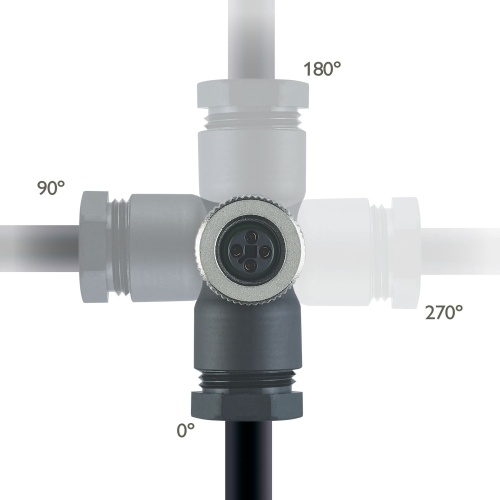

Phoenix Contact 1408989 A power connector featuring a 4-position socket with an angled M12 configuration is described as unshielded and utilizing a screw connection. The material used for the knurling is zinc die-cast, plated with nickel, while the cable gland matches the Pg11 standard. This connector accommodates external cables with diameters ranging from 8 to 10 mm and supports direct current up to 12 A at a voltage of 63 V.
Specifications
Connector Material
Cuzn
Connector protection
IP67
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
4
Sub Component
Power Connector-Cable Side
Features
Safe use in the field, thanks to a high degree of protection
Screw connection: proven connection technology for a large selection of different conductors
High-performance: DC connectors for up to 12 A and 63 V DC
Protection against incorrect connection using special T-coding
