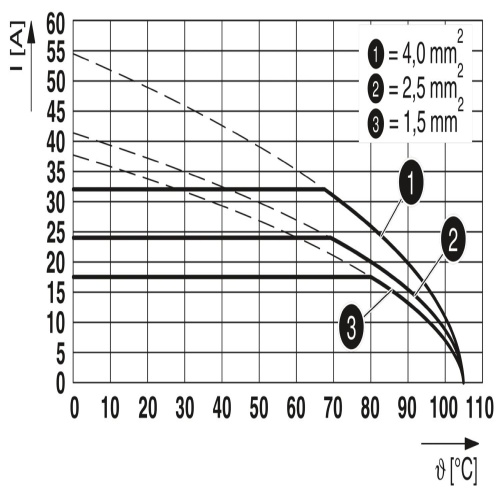

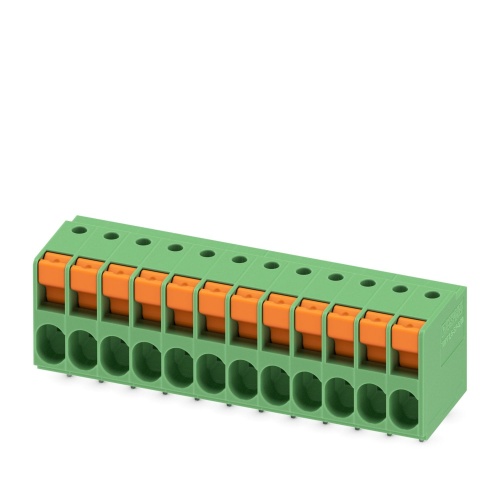

Phoenix Contact 1017513 A printed circuit board terminal has a nominal current rating of 32 A and is rated for a voltage of 400 V. The terminal's cross-sectional area is 2.5 mm² and features 12 potentials. It consists of one row with 12 positions, and its pin layout follows a linear configuration. The connections are made using push-in spring terminals that can be mounted via wave soldering, with the conductor/PCB connection direction at 0°. The terminal has a green color and is part of the TDPT 2.5/...-SP product range, which features a pitch of 5.08 mm. Each potential has two solder pins, each measuring 3.5 mm in length, and the terminals are packaged in cardboard.
