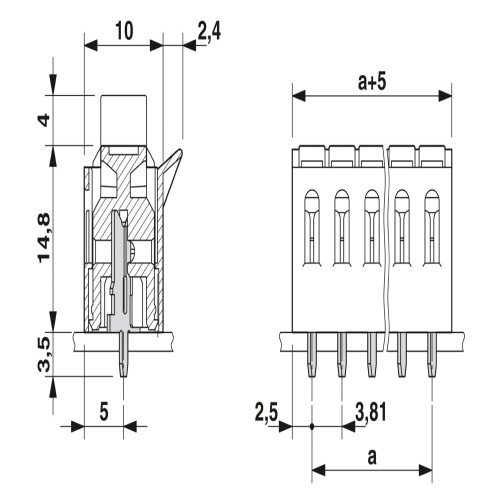

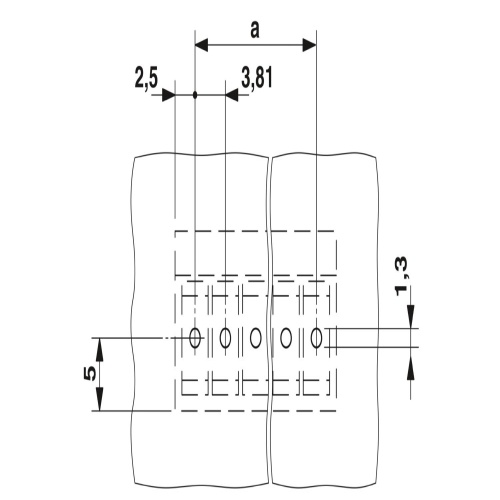

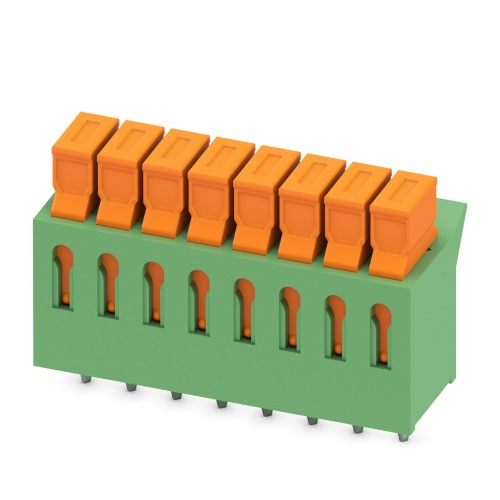

Phoenix Contact 1706235 A printed circuit board terminal has a nominal current rating of 5 A and is rated for a voltage of 160 V at III/2 conditions. The cross section area is approximately 0.34 mm², accommodating 8 potentials with a linear pinning arrangement. Each row consists of 8 positions, and the PCB is mounted using wave soldering. The connection method employs displacement connections, with the color being green. The product range spans IDC 0.3, featuring a pitch of 3.81 mm, while the conductor/PCB connection direction is at 0°.
