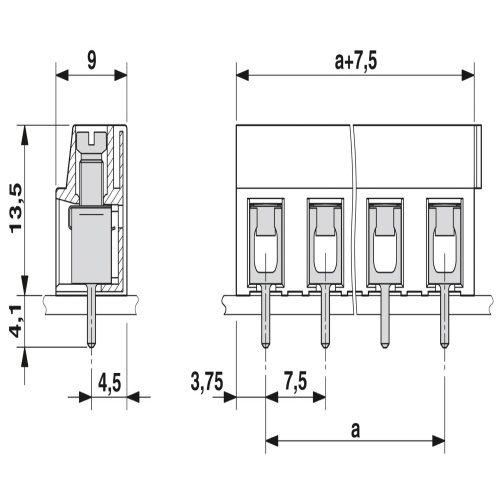

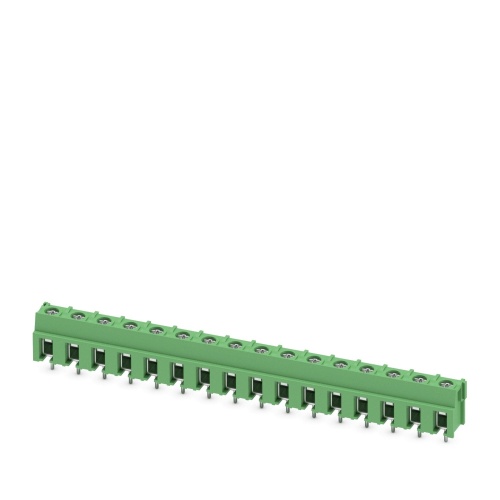

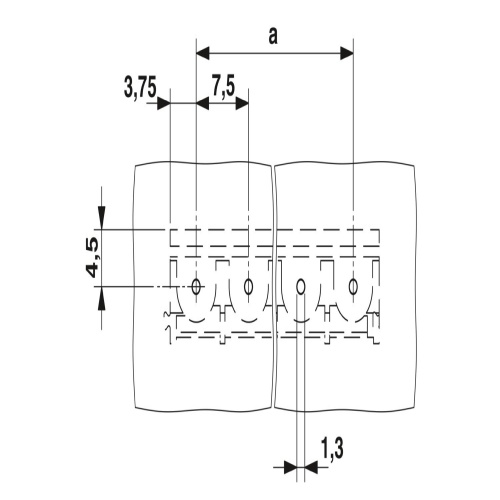

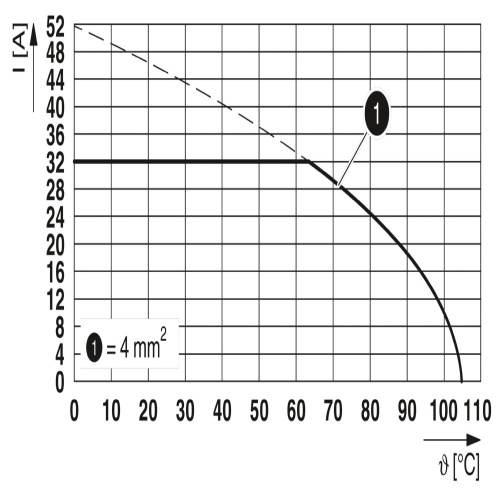

Phoenix Contact 1988244 A printed circuit board terminal has specifications including a nominal current of 32 A and a rated voltage of 800 V, with a cross-sectional area of 2.5 mm2. It features 16 potential connections along one row, where each position is separated by 7.5 mm. The connection method uses screw fasteners with wire protection, while the PCB is mounted via wave soldering. The terminal's orientation allows for conductor to PCB connection at a 0° angle and has a green color, utilizing linear pinning for its layout.
