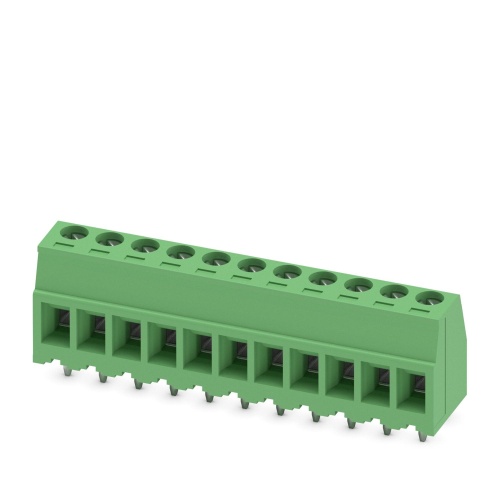

Phoenix Contact 1705634 A printed circuit board terminal has a nominal current rating of 8 A and is rated for a voltage of 320 V, with a cross-sectional area of 1.5 mm². It features 11 potential pins connected in a single row of 11 positions, and is part of the MKDSD 1,5 product range with a pitch of 3.81 mm. The connection method utilizes screw connections paired with tension sleeves, with L-slotted screw heads for mounting via wave soldering. The conductor/PCB connection direction is at 0° degrees, and the terminal's color is green; it uses linear pinning arrangements with solder pins measuring 2.7 mm in length, each pair serving two potential pins.
