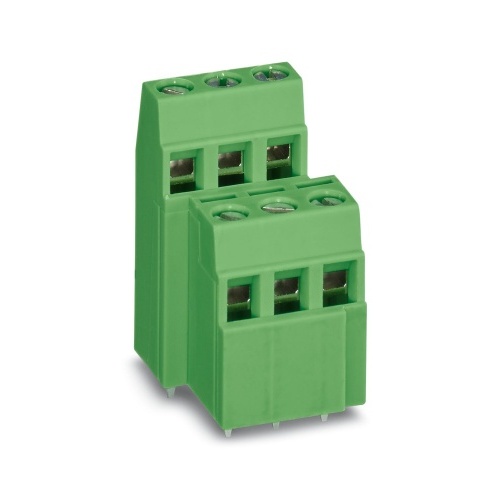

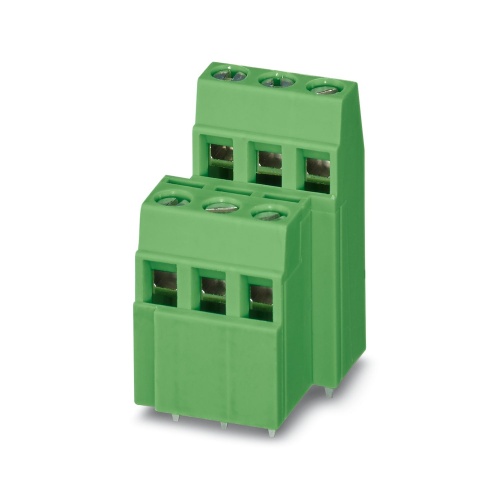

Phoenix Contact 1705281 A printed circuit board terminal features a nominal current of 10 A and is rated for a voltage of 400 V (III/2). It has a cross-sectional area of 1.5 mm² and includes six potentials with two rows containing three positions each, indicating a product range of MK3DSNMH 1,5 with a pitch of 5.08 mm. The connection method employs screw connections secured by tension sleeves with L-slotted screw heads, suitable for wave soldering at zero degrees. The terminal is colored green and features linear pinning with solder pins that are 3.5 mm long; each potential has one solder pin, while the product is packaged in cardboard.
