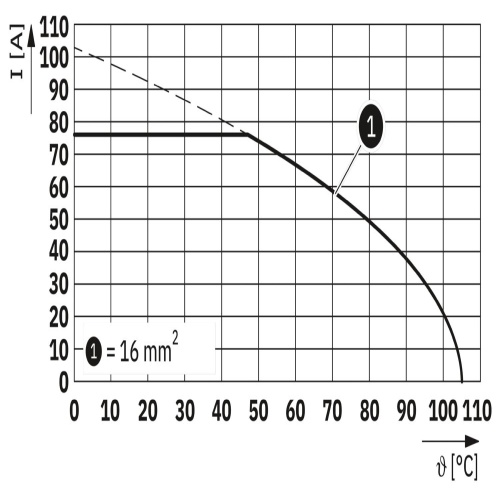

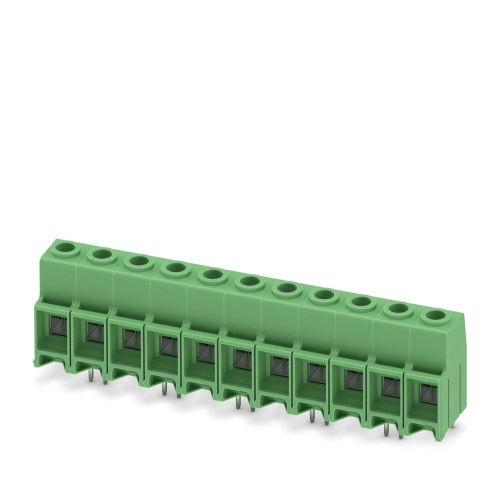

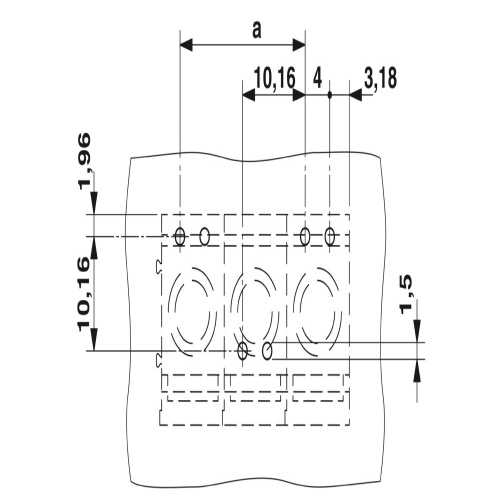

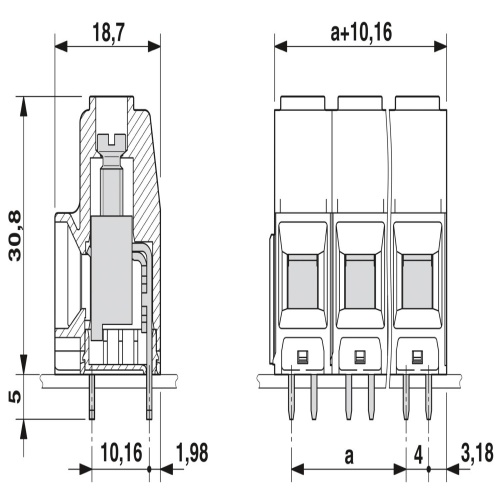

Phoenix Contact 1709775 The printed circuit board terminal has a nominal current rating of 76 A and can handle a maximum voltage of 1000 V. It features a cross-sectional area of 16 mm² and includes 11 different potentials, arranged in one row with 11 positions each. The PCB is compatible with the MKDS 10 HV product range, boasting a pitch of 10.16 mm and utilizing a screw connection method with tension sleeve. The terminal's mounting is done through wave soldering, and its conductor/PCB connection direction lies at 0 degrees. Its color is green, and pin layout is zigzag pinned with solder pins spaced 5mm apart, each potential having two solder pins.
