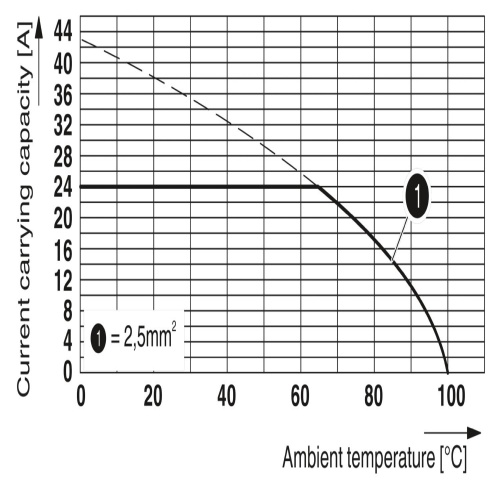

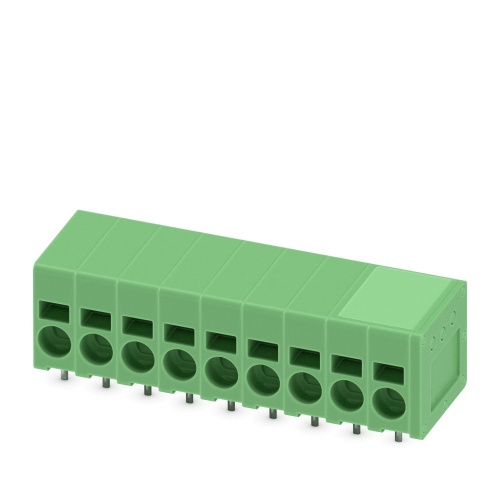

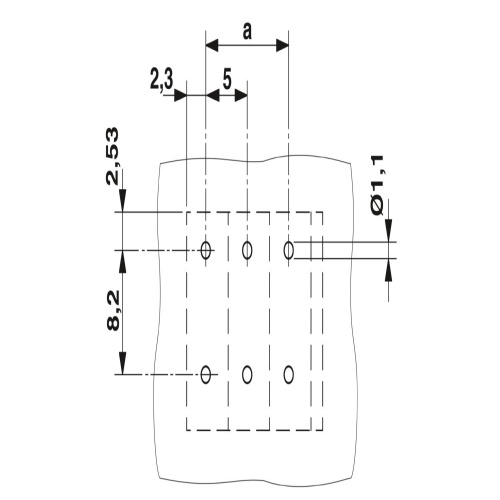

Phoenix Contact 1732454 A printed circuit board terminal features a nominal current rating of 23 A and a cross-sectional area of 2.5 mm². It has nine potentials, arranged on one row with nine positions each, falling within the product range SPT 2.5/...-H-EX. The connection method employs push-in spring connections, while wave soldering is used for mounting. The conductor and PCB are connected at a 0° angle, and the terminals exhibit a green color. The pin layout is linear, with individual pins measuring 2.5 mm in length and each potential having two solder pins attached. The product is packaged in cardboard.
