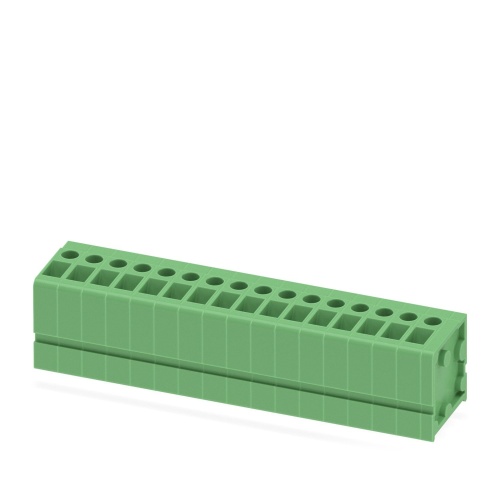

Phoenix Contact 1700607 The printed circuit board terminal has a nominal current capacity of 24 A, can handle a maximum voltage of 400 V, and features a cross-sectional area of 2.5 mm² with 16 possible potentials. The board consists of one row with 16 individual connections, each spaced 5 mm apart using front screw connectors that are mounted via wave soldering with the conductor and PCB aligned at a 90° angle, identified by a green color and featuring linear pinning arrangements, typically using two solder pins per potential, packaged in cardboard.
