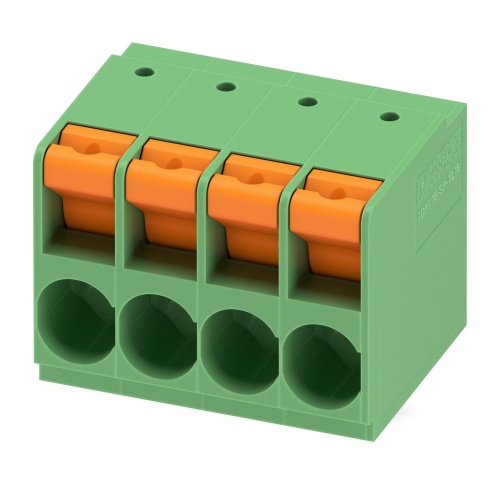

Phoenix Contact 1017533 A printed circuit board terminal is characterized by a nominal current of 76 A and a rated voltage of 1000 V, with a cross-sectional area of 16 mm². It features four potentials, arranged in a single row of four positions, each identified by a unique pin layout featuring zigzag pinnings. The connection method employs push-in spring connections, while the soldering process involves wave soldering with conductors attached at a 0° angle to the PCB. The terminal's physical dimensions and color are defined as 10.16 mm pitch and green, respectively. Each potential is connected via two solder pins, each measuring 3.5 mm in length, and the entire product range falls under the TDPT 16/…-SP designation, packaged within cardboard containers.
