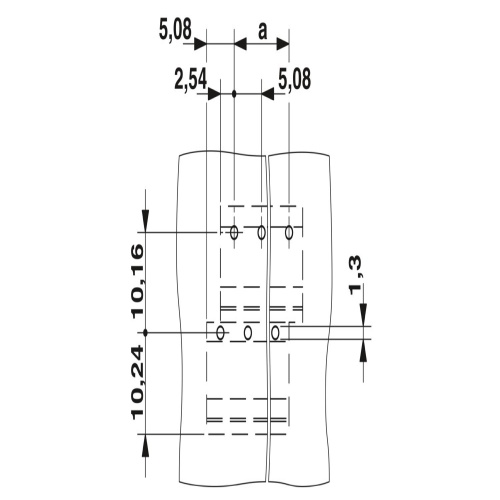

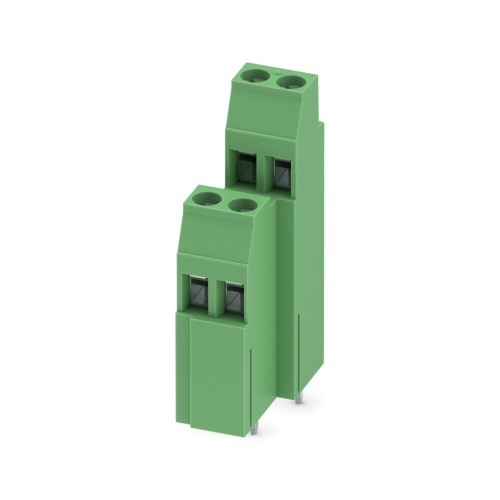

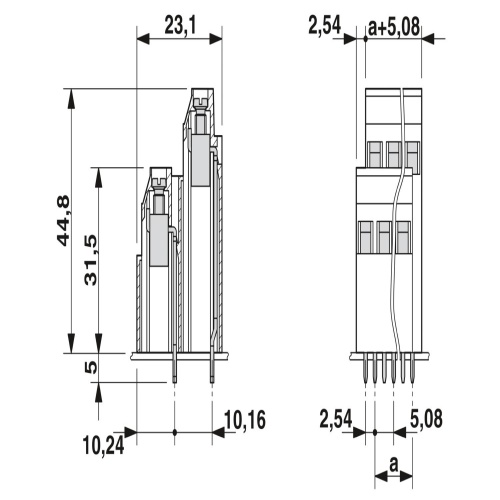

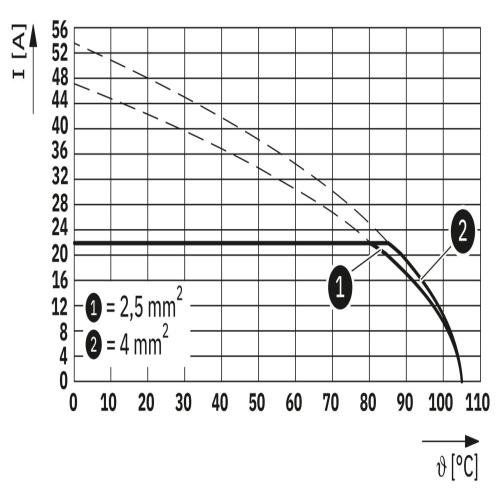

Phoenix Contact 1723205 A printed circuit board terminal features a nominal current of 22 A and is rated for 400 V, with a cross-sectional area of 2.5 mm². It has four potentials and is configured into two rows, each containing two positions, as part of the MK3DSMH 3 product range with a pitch of 5.08 mm. Connections are made via screw attachment with a tension sleeve using an L-slotted screw head, suitable for wave soldering. The terminal's color is green, and it employs linear pinning, while individual pins are spaced 5mm apart, with one solder pin per potential. This product can be packaged in cardboard, accommodating various configurations through alignment.
