Code: 146213

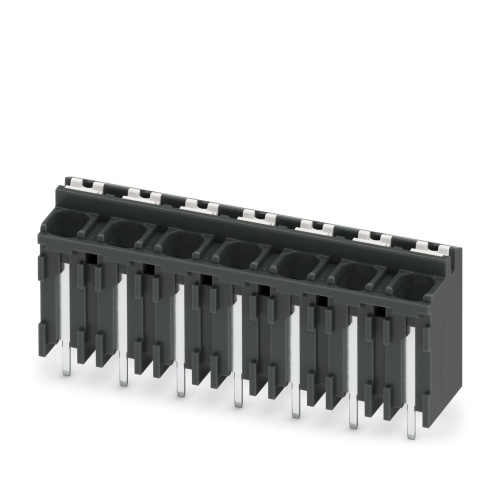

Phoenix Contact 1823573 PCB terminal block SPT-THR 1,5/ 7-V-5,08 P20 R56
Normally In Stock
Phoenix Contact 1823573 SPT-THR 1,5/ 7-V-5,08 P20 R56 ,Copper Alloy,LCP,IIIa PCB terminal block
Condition: New
Usually ships Same Day or Next Day $6.19
Sale Price
$5.16
MUST BUY IN PACKS OF 200
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

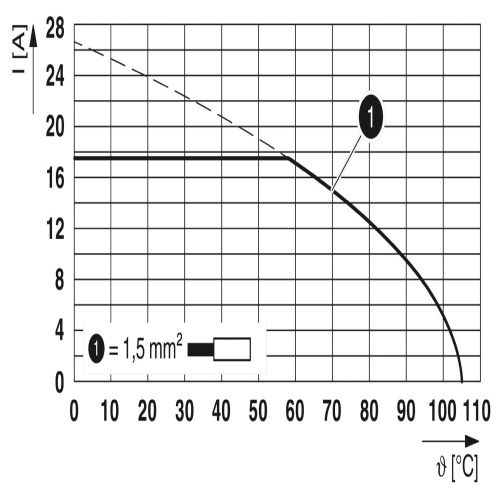

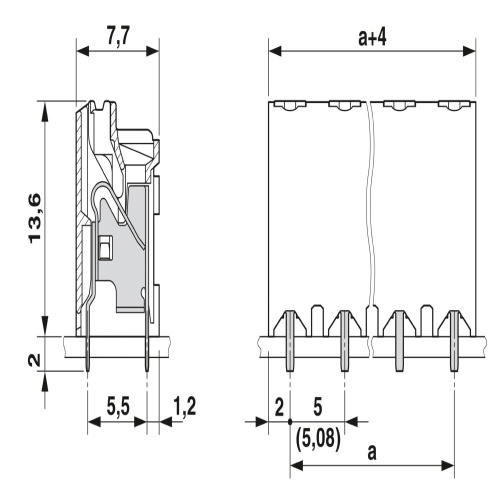

Phoenix Contact 1823573 A printed circuit board terminal features a nominal current of 17.5 A and is rated for a voltage of 320 V, with a cross-sectional area of 1.5 mm² and seven potentials. The terminal's dimensions include one row with seven positions, each measuring 5.08 mm apart, utilizing push-in spring connections for attachment via either THR soldering or wave soldering methods.
Specifications
Connector Amperage
13.5 Amp
Connector Material
Iiia
Connector Voltage
4 Kv
Connector Material
LCP
Connector Material
Copper Alloy
Manufacturer
Phoenix Contact
Sub Component
PCB Terminal Block
Number of Connections
7
Number of Positions
7
Component
PCB
Connector Voltage
320 Volt
Connector Voltage
250 Volt
Connector Voltage
500 Volt
Features
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Intuitive operation due to color-coded actuating push button
Designed for integration into the SMT soldering process
Operation and conductor connection from one direction enable integration into front of device
Quick and convenient testing using integrated test option
Two solder pins reduce the mechanical strain on the soldering spots
