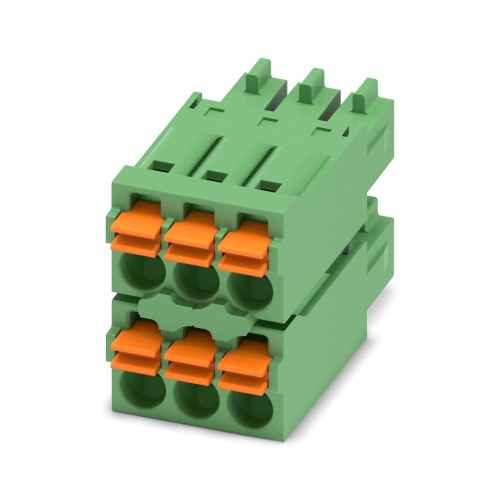

Phoenix Contact 1738814 PCB connector FMCD 1,5/ 3-ST-3,5
Normally In Stock
Code: 146061
Phoenix Contact 1738814 FMCD 1,5/ 3-ST-3,5 ,Copper Alloy,PA,I,PBT Printed-circuit board connector
Condition: New
Usually ships within 7-14 days. Call for ship time$10.85
Sale Price
$9.04
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1738814 A PCB connector has a nominal cross-sectional area of 1.5 mm² and is colored green, with an expected current rating of 8 A and a rated voltage (III/2) of 160 V, featuring a Sn contact surface that utilizes a socket connection type with six potentials, arranged in two rows and three positions. The number of connections matches the number of positions, belonging to the FMCD 1,5/...-ST product range, characterized by a pitch of 3.5 mm, utilizing push-in spring connections between conductors and the PCB, without any locking system, packaging in cardboard.
Specifications
Connector Amperage
8 Amp
Connector Material
PBT
Connector Voltage
2.5 Kv
Connector Voltage
2.95 Kv
Connector Voltage
1.39 Kv
Connector Material
I
Connector Material
PA
Connector Material
Copper Alloy
Manufacturer
Phoenix Contact
Number of Positions
3
Number of Connections
6
Component
PCB
Sub Component
PCB Plug
Connector Voltage
160 Volt
Connector Voltage
320 Volt
Features
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Intuitive operation due to color-coded actuating push button
Operation and conductor connection from one direction enable integration into front of device
