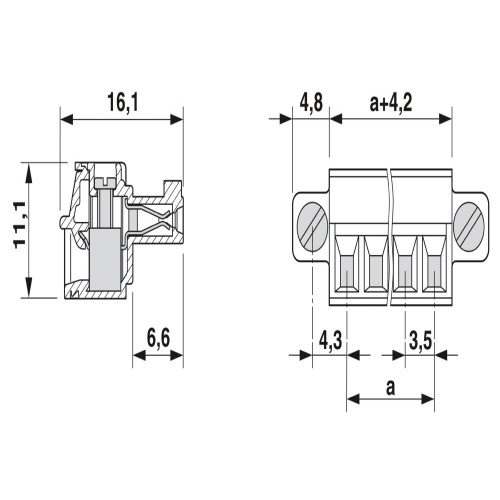

Phoenix Contact 1847055 The PCB connector features a nominal cross-sectional area of 1.5mm² and has a green color. It is rated for an 8A current flow at a maximum voltage of 160V. The contact surface material is tin (Sn) and uses a socket connection type with two potential inputs. The connector has one row, two positions, two connections, and is part of the MC1.5/STF product range, having a pitch of 3.5mm. It utilizes a screw connection system with tension sleeve, employing an L slotted screw head. The conductor meets the PCB at a 0-degree angle, while using the COMBICON MC 1.5 plug-in system and is secured by a screw locking mechanism.
