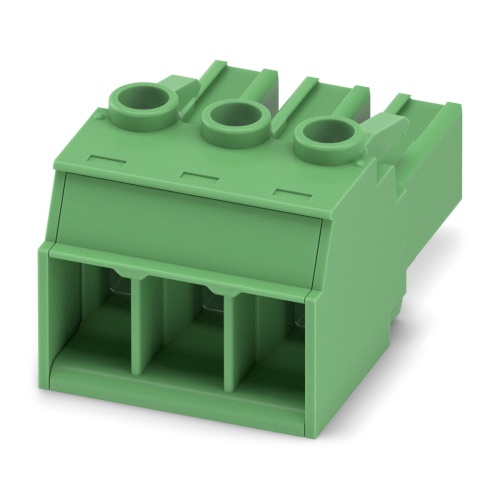

Phoenix Contact 1777736 A PCB connector with a nominal cross-sectional area of 6 mm2 features a green color, supporting a maximum current of 32 A and operating at a rated voltage of 1000 V. The contact surface is coated with tin and connects via a socket mechanism, accommodating three potentials. With a pitch of 7.62 mm and a screw connection method that includes a tension sleeve, the connector can be secured using an H1L Slotted Phillips recessed head. The conductor and PCB are connected in a 0° orientation, while a locking clip is present but not used, utilizing a COMBICON PC 5 plug-in system with no mounting or packaging components.
