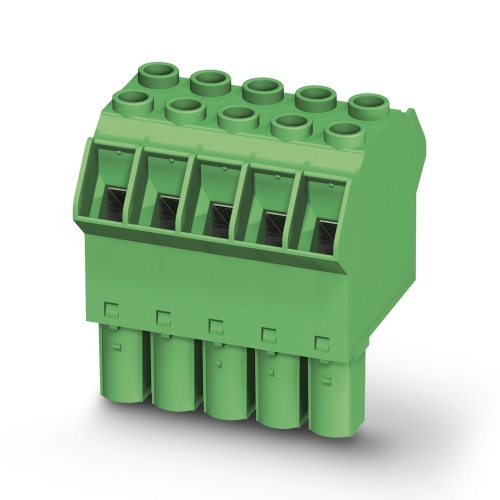

Phoenix Contact 1715235 PCB connector TPC 16/ 8-ST-10,16
Normally In Stock
Code: 145498
Phoenix Contact 1715235 TPC 16/ 8-ST-10,16 ,Copper Alloy,PA,I Printed-circuit board connector
Condition: New
Usually ships Same Day or Next Day $61.09
Sale Price
$50.91
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1715235 The PCB twin plug features a green color with a nominal cross-sectional area of 16 mm2 and is rated for 76 A of current at 1000 V. It has an Ag contact surface, a socket connection type, and eight potential connections on one row with screw connections using tension sleeves, a slotted L-shaped screw head, and a 50° conductor-to-PCB connection angle. The plug system is the COMBICON PC 16, and it does not require locking clips for mounting, as it comes in cardboard packaging without any additional mounting method.
Specifications
Connector Amperage
76 Amp
Connector Material
I
Connector Material
PA
Connector Voltage
6 Kv
Connector Voltage
8 Kv
Connector Material
Copper Alloy
Manufacturer
Phoenix Contact
Number of Positions
8
Number of Connections
16
Component
PCB
Sub Component
PCB Plug
Connector Voltage
1000 Volt
Features
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Allows connection of two conductors
Integrated double steel spring provides additional safety in the event of temperature and power fluctuations
Potentials can be easily looped through – ideal for BUS applications
