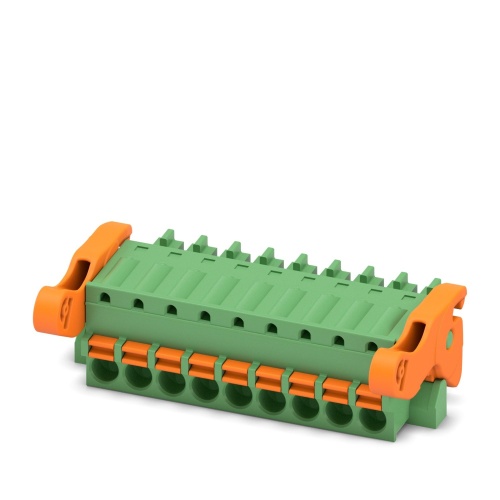

Phoenix Contact 1817495 PCB connector FK-MCP 1,5/ 9-ST-3,81-LR
Normally In Stock
Code: 145384
Phoenix Contact 1817495 FK-MCP 1,5/ 9-ST-3,81-LR ,Copper Alloy,PA,I Printed-circuit board connector
Condition: New
Usually ships Same Day or Next Day $21.91
Sale Price
$18.26
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1817495 The PCB connector is a green, 1.5mm² cross-sectional component with a nominal current capacity of 8A and a maximum rated voltage of 160V. It features a Sn contact surface, uses a push-in spring connection method, and has nine positions for connections along its single row, accommodating a total of nine connections. The connector is part of the FK-MCP 1.5/...-ST-LR product range and has a pitch of 3.81mm, utilizing a lock-and-release locking system with an ejector lever for secure mounting in cardboard packaging.
Specifications
Connector Amperage
8 Amp
Connector Voltage
2.5 Kv
Connector Voltage
2.95 Kv
Connector Voltage
1.39 Kv
Connector Material
I
Connector Material
PA
Connector Material
Copper Alloy
Manufacturer
Phoenix Contact
Number of Connections
9
Number of Positions
9
Component
PCB
Sub Component
PCB Plug
Connector Voltage
160 Volt
Connector Voltage
320 Volt
Features
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Intuitive operation due to color-coded actuating push button
Automatic locking and intuitive release through Lock and Release operating lever in contrasting color
Quick and convenient testing using integrated test option
