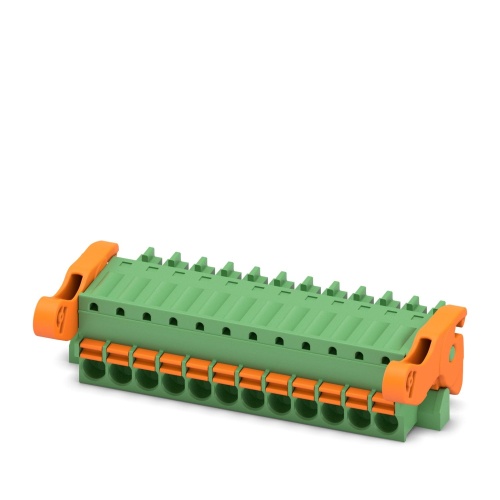

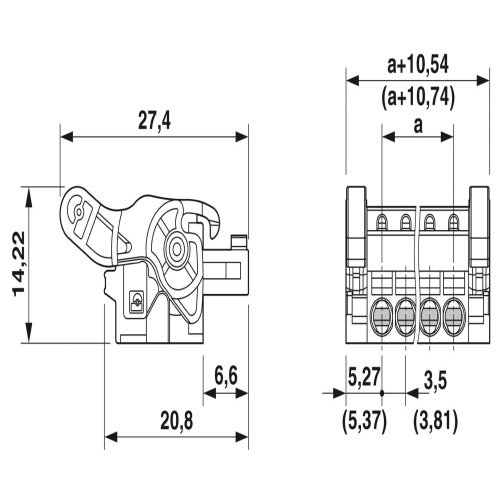

Phoenix Contact 1817330 The specified PCB connector features a nominal cross-sectional area of 1.5 mm², is green in color, and has a maximum current rating of 8 A with an insulated voltage rating of 160 V. The contact surface is made of tin (Sn), and the connection type is socket-style. This connector has 12 potential pins, arranged in one row, totaling 12 connections across its 12 positions. The pitch between contacts is 3.5 mm, utilizing a push-in spring connection method with a specific conductor/PCB connection orientation. It utilizes the COMBICON MC 1.5 plug-in system, comes equipped with a lock-and-release locking mechanism, and can be secured using a Lock & Release ejector lever. The connector's packaging is in cardboard form.
