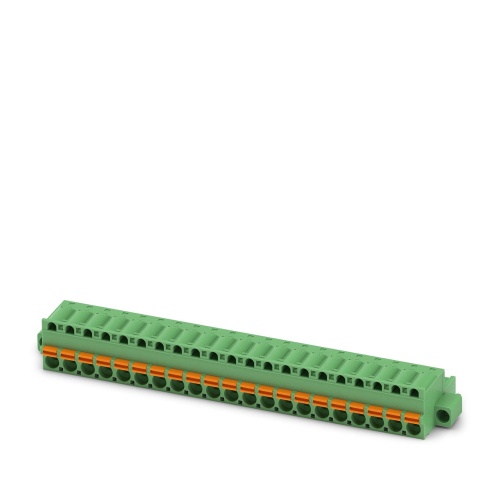

Phoenix Contact 1714472 PCB connector FKC 2,5/21-STF-5,08
Normally In Stock
Code: 145059
Phoenix Contact 1714472 FKC 2,5/21-STF-5,08 ,Copper Alloy,PA,I,PBT Plug
Condition: New
Usually ships Same Day or Next Day$150.14
Sale Price
$125.12
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1714472 The specified PCB connector features a nominal cross-section of 2.5mm² with a green color and is rated for up to 12A of current at a voltage rating of 320V. It has 21 contact surfaces and uses a socket connection method, while the plug-in system utilizes the COMBICON MSTB 2.5 configuration. The connector's pitch is 5.08mm and connects with push-in spring connections, oriented at 0° degrees, utilizing a screw locking mechanism and mounted using a screw flange, packaged in cardboard.
Specifications
Connector Amperage
12 Amp
Connector Material
PBT
Connector Voltage
4 Kv
Connector Material
I
Connector Material
PA
Connector Material
Copper Alloy
Manufacturer
Phoenix Contact
Connector Voltage
.21 Kv
Component
PCB
Sub Component
PCB Plug
Number of Positions
21
Number of Connections
21
Connector Voltage
320 Volt
Connector Voltage
630 Volt
Features
Time saving push-in connection, tools not required
Intuitive operation due to color-coded actuating push button
Quick and convenient testing using integrated test option
Screwable flange for superior mechanical stability
Can be combined with the MSTB 2,5 range
