Phoenix Contact 1709450 PCB connector PTSM 0,5/ 2-PI-2,5 WH
Normally In Stock
Code: 145031
Phoenix Contact 1709450 PTSM 0,5/ 2-PI-2,5 WH ,I,PA Printed-circuit board connector
Condition: New
Usually ships Same Day or Next Day $1.19
Sale Price
$0.99
MUST BUY IN PACKS OF 250
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

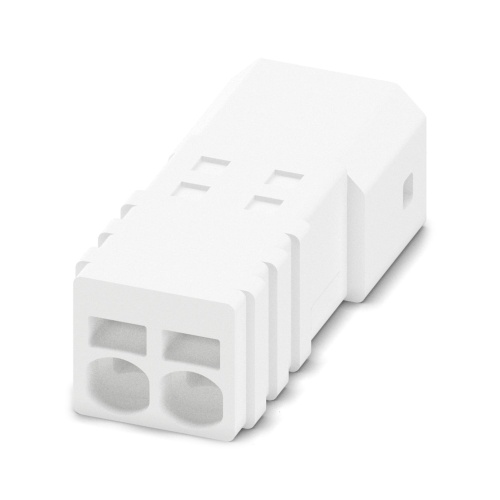

Phoenix Contact 1709450 The PCB connector is a 2-position, push-in spring connected component with a nominal cross-section of 0.5 mm² and white color. It has two potentials, rated for a maximum current of 6 A at a voltage of up to 160 V, features a tin (Sn) contact surface, and utilizes a Pin connection type. The connector is available in a COMBICON PTSM plug-in system with no locking mechanism or mounting method required, packaged individually within cardboard containers.
Specifications
Connector Amperage
6 Amp
Connector Voltage
2.5 Kv
Connector Material
I
Connector Material
PA
Connector Voltage
1.5 Kv
Manufacturer
Phoenix Contact
Number of Positions
2
Component
PCB
Sub Component
PCB Plug
Connector Voltage
160 Volt
Connector Voltage
320 Volt
Connector Voltage
100 Volt
Features
White design: Stable color when welding and during use
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
High current carrying capacity of 6 A in very compact dimensions
Inverted connector with pin contacts for touch-proof device outputs or free-hanging cable/cable connections
