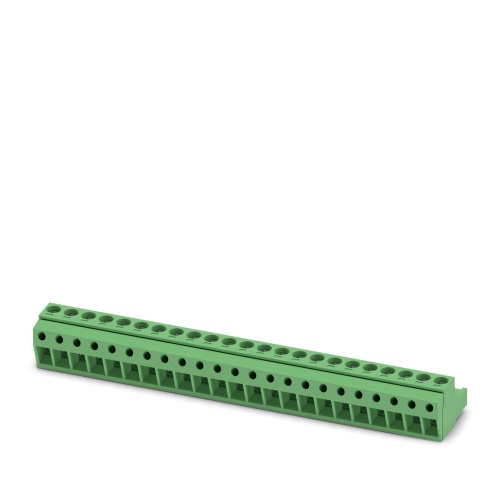

Phoenix Contact 1765988 PCB connector MSTBP 2,5/23-ST
Normally In Stock
Code: 144911
Phoenix Contact 1765988 MSTBP 2,5/23-ST ,Copper Alloy,PA,I Printed-circuit board connector
Condition: New
Usually ships Same Day or Next Day$659.40
Sale Price
$549.50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1765988 The PCB connector has a nominal cross-section of 2.5mm² and is colored green, with a rated voltage of 320V at a current of 12A. It features a socket contact connection type, 23 potential leads, and is mounted on a single row with 23 positions, connections, and connectors. The connector uses a screw connection with tension sleeve, L-slotted screws, and has no locking clip; it is a plug-in system using the COMBICON MSTB 2,5 standard, and can be mounted without any additional components, packaged in cardboard.
Specifications
Connector Amperage
12 Amp
Connector Voltage
4 Kv
Connector Voltage
4.8 Kv
Connector Material
I
Connector Material
PA
Connector Material
Copper Alloy
Manufacturer
Phoenix Contact
Connector Voltage
.21 Kv
Component
PCB
Sub Component
PCB Plug
Number of Positions
23
Number of Connections
23
Connector Voltage
320 Volt
Connector Voltage
250 Volt
Connector Voltage
630 Volt
Features
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Quick and convenient testing using integrated test option
Allows connection of two conductors
