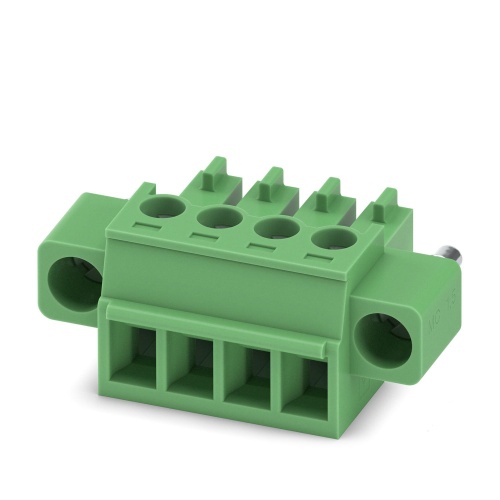

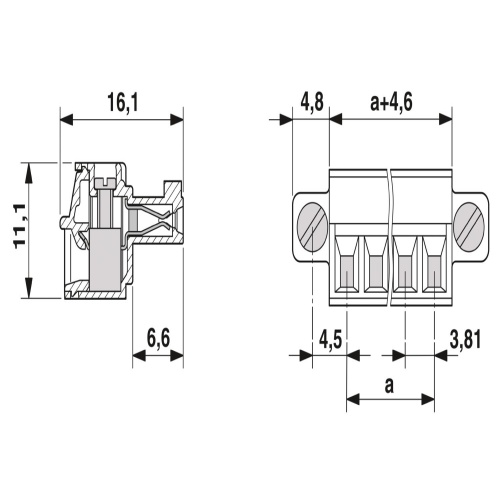

Phoenix Contact 1827729 The PCB connector has a nominal cross-sectional area of 1.5 mm² and is identified by its green color, rated for an nominal current of 8 A and a maximum voltage of 160 V. The contact surface material is tin (Sn) and features a socket connection type with four potentials and one row of four positions, each connected to a single connection point. This connector falls within the MC 1,5/...-STF product range, has a pitch of 3.81 mm, and uses a screw connection method with a tension sleeve and L-slotted screw head, while the conductor and PCB are connected at a 0-degree angle using a COMBICON MC 1,5 plug-in system that is secured by a screw locking mechanism, mounted via a screw flange, and packaged in cardboard.
