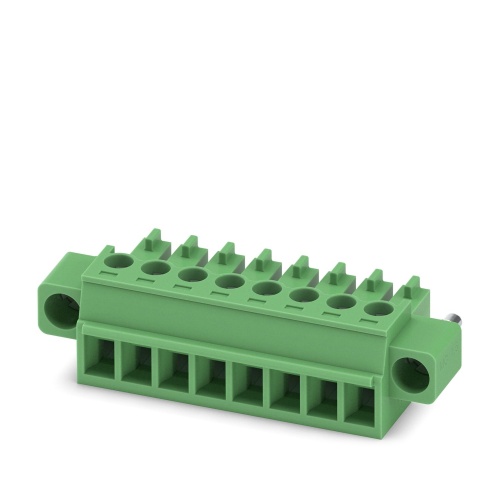

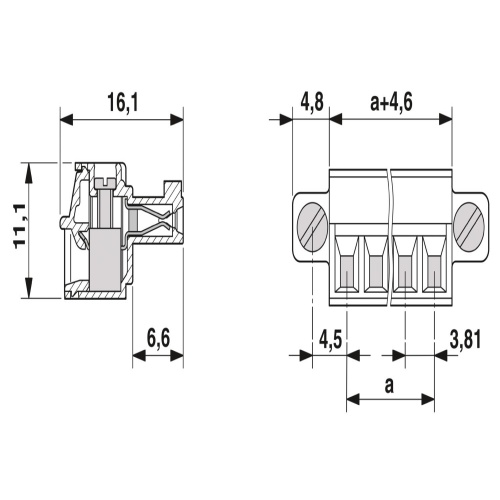

Phoenix Contact 1827761 A specific PCB connector with a nominal cross-sectional area of 1.5 mm² features an green color and is designed to handle up to 8 A of current, with a rated voltage of 160 V. The connector's contact surface is made of tin (Sn) and has a socket connection type, accommodating eight potentials in a single row with eight positions, connections, and numbers. It falls under the product range MC 1,5/..-STF and boasts a pitch of 3.81 mm. Connection is achieved through screw attachment with a tension sleeve, characterized by an L-slotted screw head and conductor/PCB connection direction at 0° degrees. This connector utilizes a COMBICON MC 1,5 plug-in system, secured via a screw locking mechanism, mounted using a screw flange, and packaged in cardboard for distribution.
