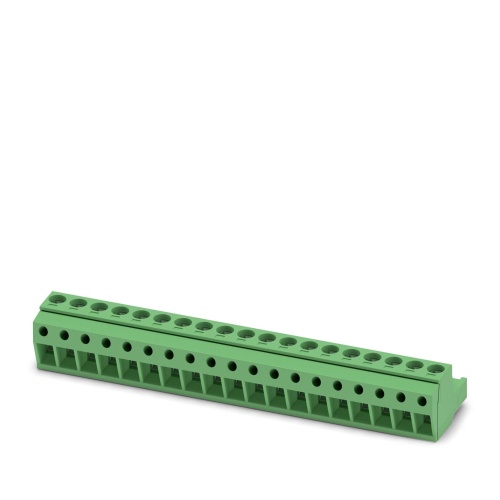

Phoenix Contact 1765946 A PCB connector features a nominal cross-sectional area of 2.5 mm² and is colored green, with an expected current rating of 12 A and a maximum rated voltage of 320 V at 50% of its insulation level. The contact surface material is tin, connecting via a socket type, allowing for the connection of 19 different potentials across a single row, spanning 19 positions. The connector's dimensions include a pitch of 5 mm and utilizes screw connections with tension sleeves for secure attachment, employing an L-slotted screw head design. The conductor-to-PCB connection direction is at 0° degrees, featuring a locking clip option but no lock mechanism required.
