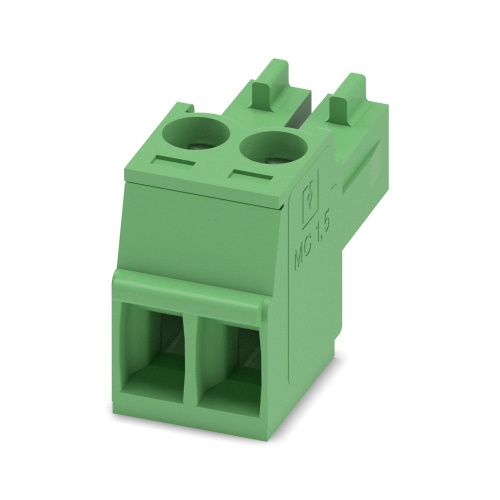

Phoenix Contact 1840366 PCB connector MC 1,5/ 2-ST-3,5
Normally In Stock
Code: 144521
Phoenix Contact 1840366 MC 1,5/ 2-ST-3,5 ,Copper Alloy,PA,I Printed-circuit board connector
Condition: New
Usually ships Same Day or Next Day $3.43
Sale Price
$2.86
MUST BUY IN PACKS OF 250
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1840366 The PCB connector has a nominal cross-sectional area of 1.5 mm2 and is colored green, with a maximum current rating of 8 A and a maximum voltage rating of 160 V. The contact surface is made of tin, the connection type is a socket, and there are two potentials available. The connector features a screw connection method with a tension sleeve, an L-slotted screw head, and conductors connect to the PCB at a 0° angle using a COMBICON MC 1.5 plug-in system that does not require locking or mounting, packaged in cardboard without additional accessories.
Specifications
Connector Amperage
8 Amp
Connector Voltage
2.5 Kv
Connector Voltage
2.95 Kv
Connector Voltage
1.39 Kv
Connector Material
I
Connector Material
PA
Connector Material
Copper Alloy
Manufacturer
Phoenix Contact
Number of Connections
2
Number of Positions
2
Component
PCB
Sub Component
PCB Plug
Connector Voltage
160 Volt
Connector Voltage
320 Volt
Features
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Allows connection of two conductors
