Code: 144401

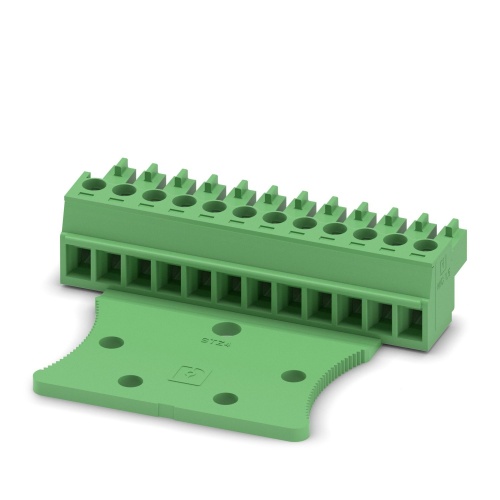

Phoenix Contact 1768978 PCB connector MC 1,5/12-STZ4-3,81
Normally In Stock
Phoenix Contact 1768978 MC 1,5/12-STZ4-3,81 ,Copper Alloy,PA,I Printed-circuit board connector
Condition: New
Usually ships Same Day or Next Day $16.06
Sale Price
$13.38
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1768978 The PCB connector has a nominal cross-section of 1.5mm² and is green in color, with a maximum current rating of 8A and a voltage rating of up to 160V. It features a Sn contact surface and uses a socket connection type with 12 individual connections, arranged in one row and position. The connector can be secured using a screw connection with tension sleeve, and has an L-slotted screw head design.
Specifications
Connector Amperage
8 Amp
Connector Voltage
2.5 Kv
Connector Material
I
Connector Material
PA
Connector Material
Copper Alloy
Manufacturer
Phoenix Contact
Number of Connections
12
Number of Positions
12
Component
PCB
Sub Component
PCB Plug
Connector Voltage
160 Volt
Connector Voltage
320 Volt
Features
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Allows connection of two conductors
Pull-out aid facilitates handling and allows the tensile force to be reduced at the contact point
