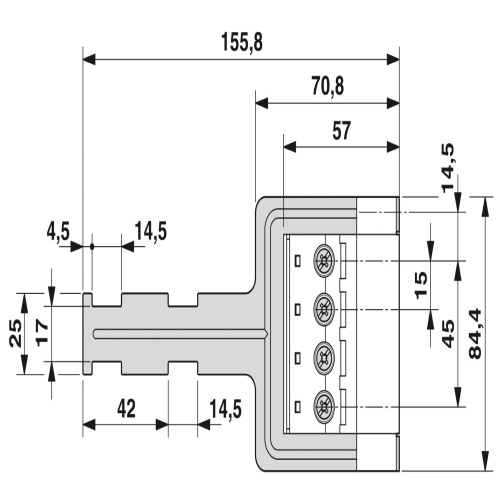

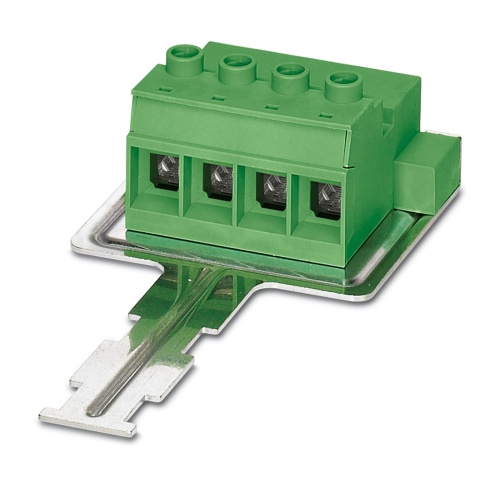

Phoenix Contact 1784907 The PCB connector features a nominal cross-section of 35 mm2 and is colored green, with a maximum current rating of 125 A and a rated voltage of up to 1000 V. The contact surface material is silver (Ag) and the connection type is pin-based, supporting four potentials across one row of four positions, each connected by a screw mechanism with a tension sleeve for secure attachment, utilizing an L slotted screw head, and arranged in a 15 mm pitch configuration, suitable for use in applications requiring high electrical performance and stability.
