Code: 143672

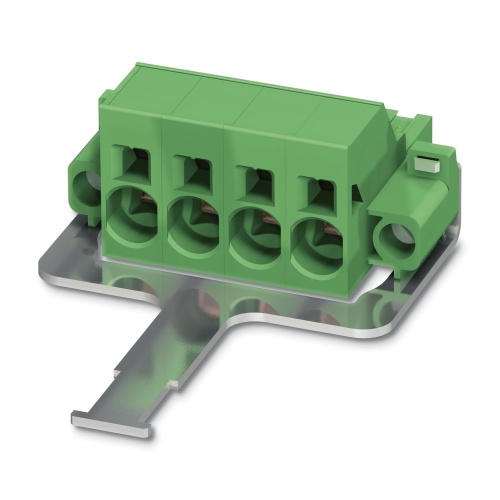

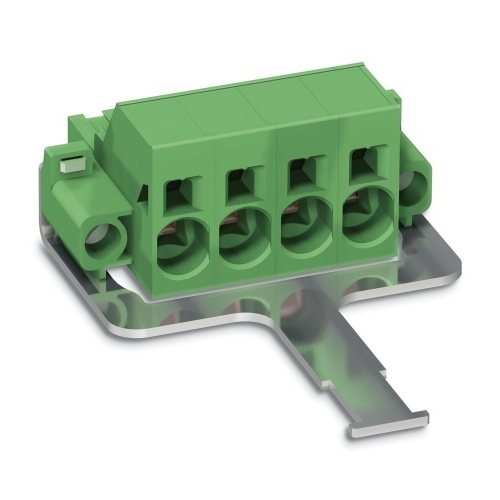

Phoenix Contact 1711488 PCB connector SPC 16/ 4-STF-SH-10,16
Normally In Stock
Phoenix Contact 1711488 SPC 16/ 4-STF-SH-10,16 ,Copper Alloy,PA,I Printed-circuit board connector
Condition: New
Usually ships Same Day or Next Day $21.60
Sale Price
$18.00
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1711488 The PCB connector in question features a nominal cross-sectional area of 16 mm², with a green color and a rated voltage of 1000 V at 76 A. The contact surface material is silver, using a socket connection type with four potentials. With a pitch of 10.16 mm, this connector uses a push-in spring connection method, where the conductor meets the PCB at a 0° angle. A screw locking mechanism secures the connector without a locking clip, and it can be mounted using a screw flange. The product range includes the SPC 16/..-STF-SH, and it's packaged in cardboard.
Specifications
Connector Amperage
76 Amp
Connector Material
I
Connector Material
PA
Connector Voltage
6 Kv
Connector Voltage
8 Kv
Connector Material
Copper Alloy
Manufacturer
Phoenix Contact
Number of Connections
4
Number of Positions
4
Component
PCB
Sub Component
PCB Plug
Connector Voltage
1000 Volt
Features
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Clamping space opened by means of fixed screwdriver enables convenient conductor connection
Integrated double steel spring provides additional safety in the event of temperature and power fluctuations
Optimized for tight installation situations: operation and conductor connection from one direction
Shield for adherence to the EMC requirements and an optional strain relief
Screwable flange for superior mechanical stability
