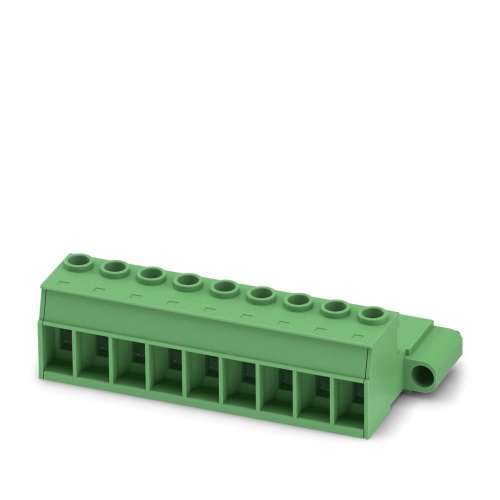

Phoenix Contact 1969522 A PCB connector with a nominal cross-sectional area of 16 mm2 has a green color and can handle a maximum current of 76 A at a rated voltage of 1000 V. The contact surface is made of silver, and it features a pin connection type with 9 potentials, arranged in a single row of 9 positions and connections. The connector is part of the IPC 16/...-STF product range and has a pitch of 10.16 mm. It uses a screw connection method with tension sleeve, an L-slotted screw head, and no locking clip. The conductor meets the PCB connection direction at 0° degrees.
