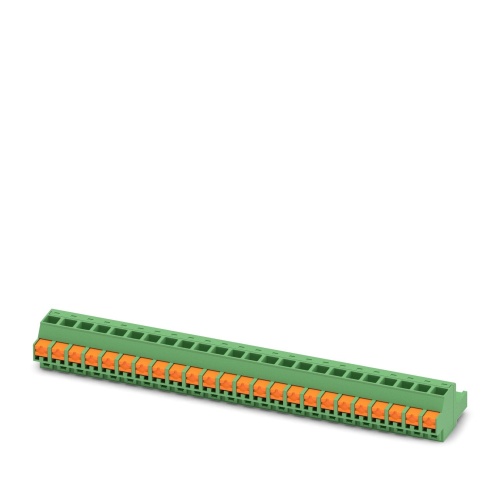

Phoenix Contact 1861454 PCB connector FKCOR 2,5/24-ST-5,08
Normally In Stock
Code: 143406
Phoenix Contact 1861454 FKCOR 2,5/24-ST-5,08 ,Copper Alloy,PA,I,PBT Printed-circuit board connector
Condition: New
Usually ships Same Day or Next Day $28.75
Sale Price
$23.96
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1861454 A PCB connector with a nominal cross-section of 2.5mm² features a green color and is designed to handle a maximum current of 12A, while it can safely operate at a rated voltage of up to 320V. The contact surface material is Sn and the connection type is socket, connecting 24 potentials in a single row with 24 positions for connections, all packaged in a cardboard case.
Specifications
Connector Amperage
12 Amp
Connector Material
PBT
Connector Voltage
4 Kv
Connector Material
I
Connector Material
PA
Connector Material
Copper Alloy
Manufacturer
Phoenix Contact
Component
PCB
Sub Component
PCB Plug
Number of Connections
24
Number of Positions
24
Connector Voltage
320 Volt
Connector Voltage
250 Volt
Connector Voltage
630 Volt
Features

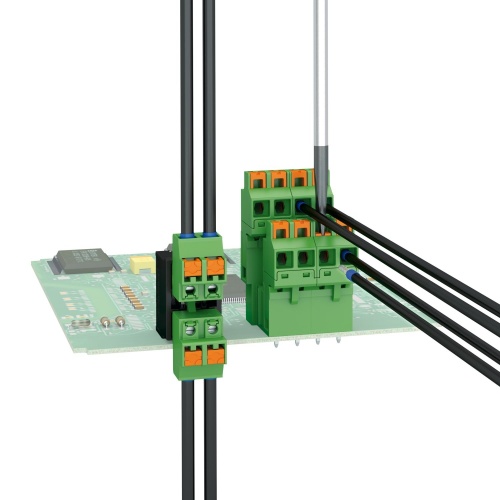

The conductor connection orthogonal to the direction of operation simplifies the cabling of DIN-rail-mountable devices
Time saving push-in connection, tools not required
Intuitive operation due to color-coded actuating push button
Quick and convenient testing using integrated test option
Can be combined with the MSTB 2,5 range
