Code: 143405
Phoenix Contact 1861674 PCB connector FKCOR 2,5/23-STF-5,08
Normally In Stock
Phoenix Contact 1861674 FKCOR 2,5/23-STF-5,08 ,Copper Alloy,PA,I,PBT Printed-circuit board connector
Condition: New
Usually ships Same Day or Next Day $28.12
Sale Price
$23.43
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

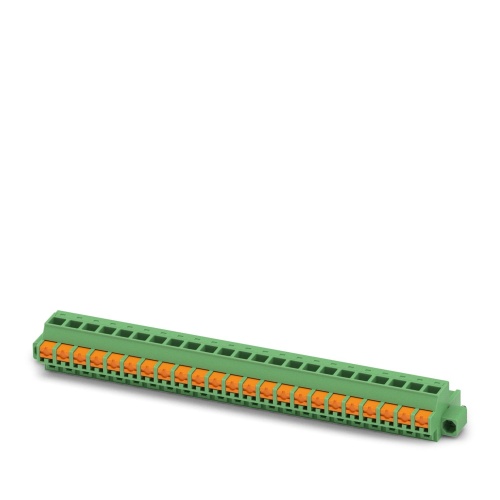

Phoenix Contact 1861674 The PCB connector has a nominal cross-sectional area of 2.5 mm² and is colored green, with a maximum current capacity of 12 A and a rated voltage of 320 V (III/2). The contact surface is tin-plated, using a socket connection type with 23 pins in a single row, arranged in a push-in spring connection configuration at a 90-degree angle. The connector features a locking clip, screw-locked, and uses a plug-in system from the COMBICON MSTB 2.5 series, packaged in cardboard with screws for mounting.
Specifications
Connector Amperage
12 Amp
Connector Material
PBT
Connector Voltage
4 Kv
Connector Material
I
Connector Material
PA
Connector Material
Copper Alloy
Manufacturer
Phoenix Contact
Component
PCB
Sub Component
PCB Plug
Number of Positions
23
Number of Connections
23
Connector Voltage
320 Volt
Connector Voltage
250 Volt
Connector Voltage
630 Volt
Features

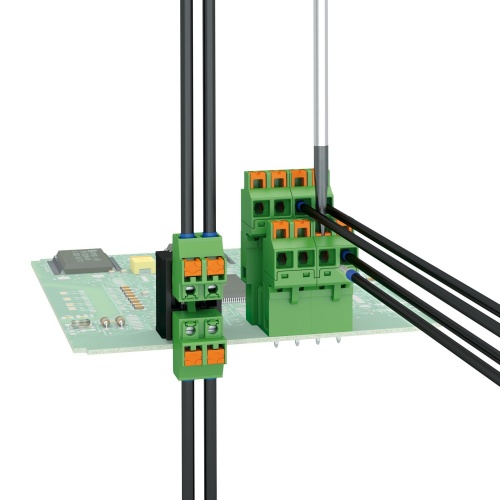

The conductor connection orthogonal to the direction of operation simplifies the cabling of DIN-rail-mountable devices
Time saving push-in connection, tools not required
Intuitive operation due to color-coded actuating push button
Screwable flange for superior mechanical stability
Can be combined with the MSTB 2,5 range
