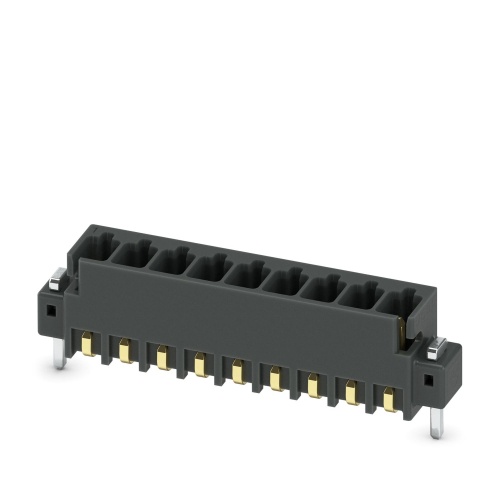

Phoenix Contact 1821614 A PCB header features a black cross-sectional area of 0.5 mm2 and is rated for up to 6 A of nominal current at 160 V. The connection type is pin-based with 9 pins in total, including 1 per potential, arranged in a linear pad geometry. This header is designed for SMD soldering, does not feature any locking mechanism, and has a standard connector pattern alignment. It's part of the MCV 0,5/..-G-SMD product range and comes on a 56 mm wide tape with a pitch of 2.54 mm.
