Code: 141833

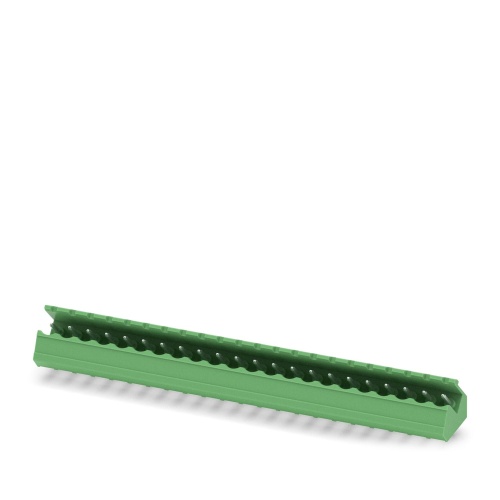

Phoenix Contact 1769434 PCB header SMSTB 2,5/22-G
Normally In Stock
Phoenix Contact 1769434 SMSTB 2,5/22-G ,Copper Alloy,PA,I Printed-circuit board connector
Condition: New
Usually ships Same Day or Next Day$484.55
Sale Price
$403.79
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1769434 The PCB headers have a nominal cross-sectional area of 2.5mm² and are colored green, with a maximum current rating of 12A and a maximum rated voltage of 320V, featuring a Sn contact surface and pin connections that are arranged in a linear pattern, measuring 5mm in pitch, and can be mounted using wave soldering without the need for additional locking or packaging.
Specifications
Connector Amperage
12 Amp
Connector Voltage
4 Kv
Connector Material
I
Connector Material
PA
Connector Material
Copper Alloy
Manufacturer
Phoenix Contact
Connector Voltage
.21 Kv
Component
PCB
Sub Component
PCB Header
Number of Connections
22
Number of Positions
22
Connector Voltage
320 Volt
Connector Voltage
630 Volt
Features
Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
Well-known mounting principle allows worldwide use
Angled connection enables multi-row arrangement on the PCB
