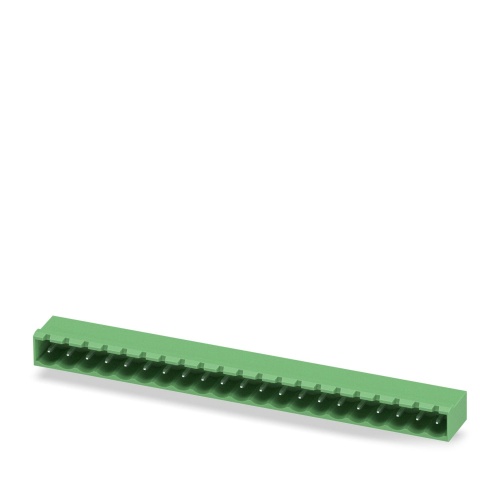

Phoenix Contact 1757653 PCB header MSTBA 2,5/21-G
Normally In Stock
Code: 141759
Phoenix Contact 1757653 MSTBA 2,5/21-G ,Copper Alloy,PBT,IIIa Printed-circuit board connector
Condition: New
Usually ships within 7-14 days. Call for ship time$9.42
Sale Price
$7.85
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1757653 PCB headers have a nominal cross-sectional area of 2.5mm² and are colored green, with a nominal current capacity of 12A and a rated voltage of 320V (III/2). They feature a Sn contact surface and utilize pin connections with 21 pins arranged in a linear layout, each with a solder pin length of 3.23mm, connected without locking or mounting methods and packaged in cardboard.
Specifications
Connector Amperage
12 Amp
Connector Material
PBT
Connector Material
Iiia
Connector Voltage
4 Kv
Connector Material
Copper Alloy
Manufacturer
Phoenix Contact
Connector Voltage
.21 Kv
Component
PCB
Sub Component
PCB Header
Number of Positions
21
Number of Connections
21
Connector Voltage
320 Volt
Connector Voltage
250 Volt
Connector Voltage
400 Volt
Features
Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
Well-known mounting principle allows worldwide use
Plug-in direction parallel to the PCB
Closed contour for optimum stability of the plug-in connection
Easy PCB replacement thanks to plug-in modules
