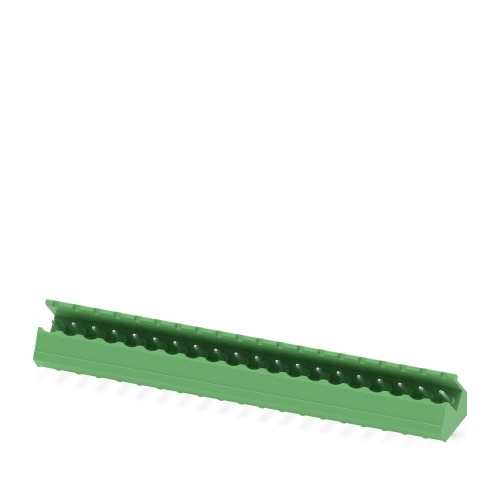

Phoenix Contact 1769418 PCB header SMSTB 2,5/20-G
Normally In Stock
Code: 141734
Phoenix Contact 1769418 SMSTB 2,5/20-G ,Copper Alloy,PA,I Printed-circuit board connector
Condition: New
Usually ships Same Day or Next Day$321.31
Sale Price
$267.76
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1769418 The PCB header details are as follows, with a nominal cross-sectional area of 2.5mm² and a green color, supporting up to 12A of current at a rated voltage of 320V. The contact surface is made of tin and features linear pinning, wave soldering for mounting, 20 pins in a single row of 20 positions, with no locking system and standard connector pattern alignment, packaged in cardboard.
Specifications
Connector Amperage
12 Amp
Connector Voltage
4 Kv
Connector Material
I
Connector Material
PA
Connector Material
Copper Alloy
Manufacturer
Phoenix Contact
Connector Voltage
.21 Kv
Component
PCB
Sub Component
PCB Header
Number of Connections
20
Number of Positions
20
Connector Voltage
320 Volt
Connector Voltage
630 Volt
Features
Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
Well-known mounting principle allows worldwide use
Angled connection enables multi-row arrangement on the PCB
