Code: 141622

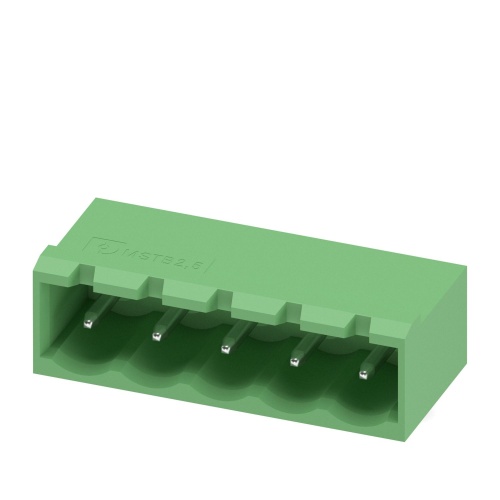

Phoenix Contact 1757271 PCB header MSTBA 2,5/ 5-G-5,08
Normally In Stock
Phoenix Contact 1757271 MSTBA 2,5/ 5-G-5,08 ,Copper Alloy,PA,I Printed-circuit board connector
Condition: New
Usually ships Same Day or Next Day $1.93
Sale Price
$1.61
MUST BUY IN PACKS OF 250
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1757271 The given PCB header has a nominal cross-sectional area of 2.5 mm² and is colored green, with a rated voltage of 320 V and a maximum current rating of 12 A. The contact surface is made of tin and features linear pinning with a solder pin length of 3.23 mm, arranged in a standard pattern that aligns with the COMBICON MSTB 2,5 pin connector system, which includes five pins with one solder pin per potential position, for a total of 5 connections, and is designed for wave soldering mounting without any additional locking or packaging elements.
Specifications
Connector Amperage
12 Amp
Connector Voltage
4 Kv
Connector Material
I
Connector Material
PA
Connector Material
Copper Alloy
Manufacturer
Phoenix Contact
Connector Voltage
.21 Kv
Number of Connections
5
Number of Positions
5
Component
PCB
Sub Component
PCB Header
Connector Voltage
320 Volt
Connector Voltage
630 Volt
Features
Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
Well-known mounting principle allows worldwide use
Plug-in direction parallel to the PCB
Closed contour for optimum stability of the plug-in connection
Easy PCB replacement thanks to plug-in modules
