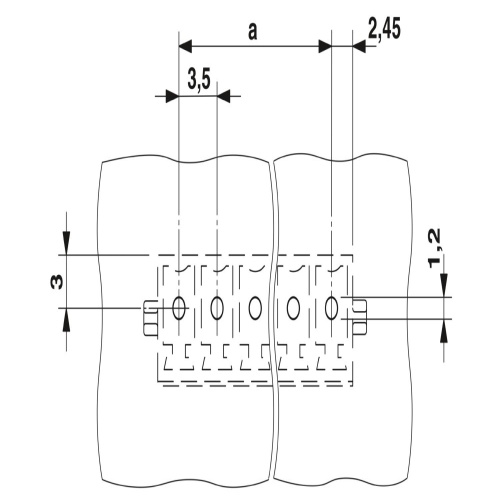

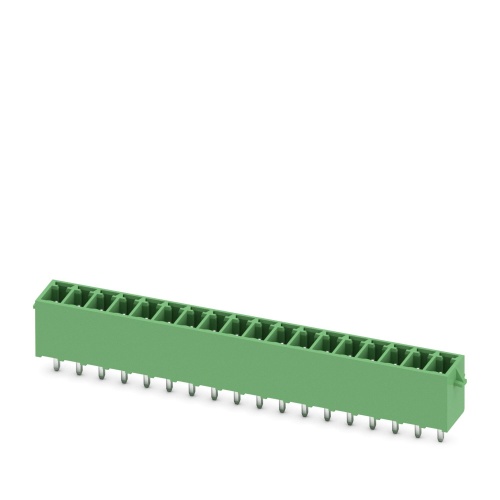

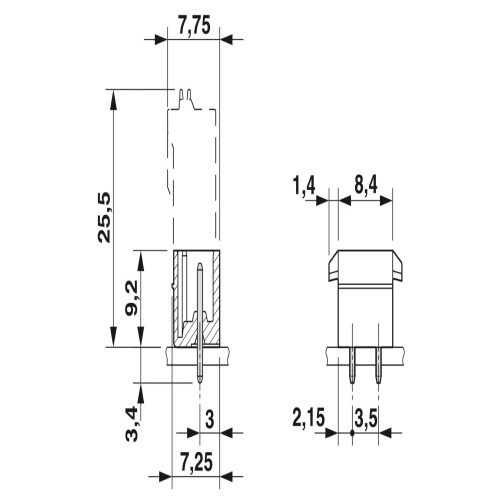

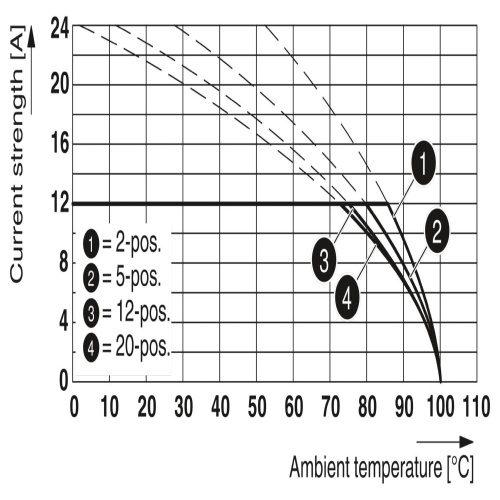

Phoenix Contact 1731646 The PCB headers have a nominal cross-sectional area of 1.5 mm2, a green color, and are rated for a maximum current of 8 A with a rated voltage of 160 V at III/2 conditions. The contact surface is Sn plated and features pin contacts with 18 potentials, arranged in a single row with 18 pins, connected via 18 connections, categorized under the MCV 1,5/..-G-RN product range, which has a pitch of 3.5 mm and can be mounted using wave soldering, employing linear pinning and featuring solder pins of length 3.4 mm per potential, utilizing the COMBICON FMC 1,5 - MCDN 1,5 plug-in system with standard alignment and snap-in locking mechanism, packaged in cardboard.
