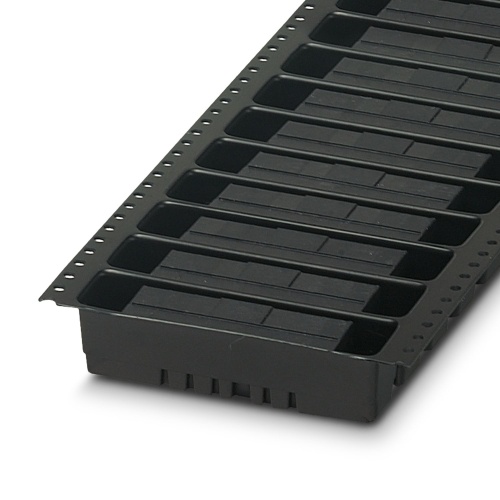

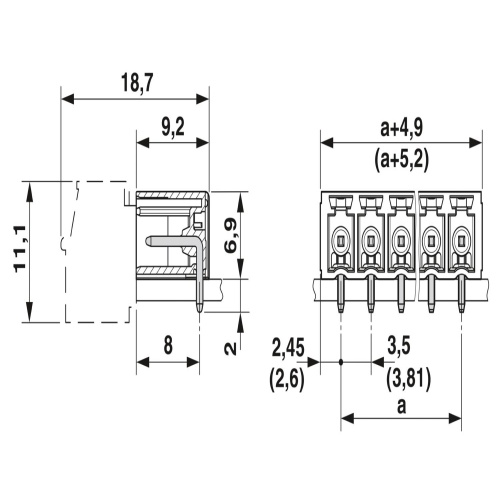

Phoenix Contact 1011114 The PCB header features a nominal cross-sectional area of 1.5mm², has a black color, can handle up to 8A of current, and is rated for 160V. It consists of 7 pins with a pitch of 3.5mm, allowing for linear pinning and solder pin spacing of 2mm. The headers are designed for THR mounting, using either soldering or wave soldering methods, and do not require locking or plugging systems, instead utilizing standard pin connector patterns without any additional mounting elements, packaged on a 44mm wide tape.
