Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Phoenix Contact 0800398 Shrink sleeve WMS 2,4 (60X4)R YE
Normally In Stock
Code: 1323
Phoenix Contact WMS 2, 4 (60X4)R YE Yellow Marker for THERMOARK Roll Printer, No perforations/1 label per sleeve, 250 labels on 250 sleeves, , white, labeling field: 60 x 4 mm, accepts up to 2.4 mm diameter conductor. 18-24 gauge MTW (16-24 THHN)
Condition: New
Usually ships Same Day or Next Day$203.36
Sale Price
$169.47
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

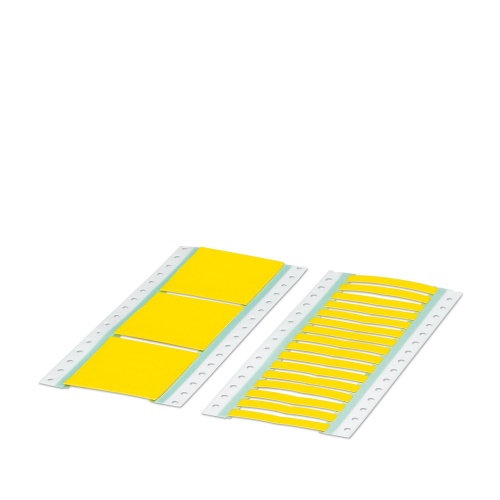

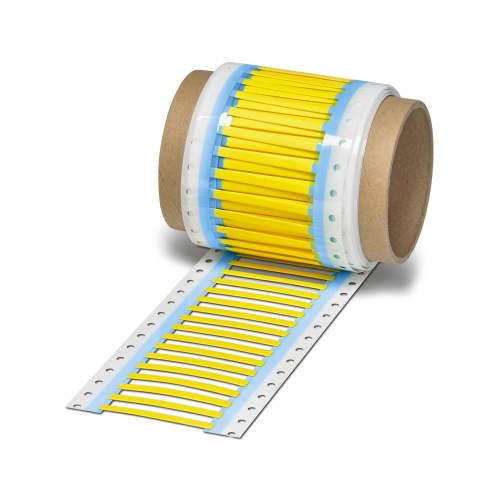

Phoenix Contact 0800398 A shrink sleeve roll with a yellow color can be labeled using various THERMOMARK models including E.300 (D)/600 (D), ROLLMASTER 300/600, ROLL X1, ROLL, ROLL 2.0, W, and X1.2. The cable diameter ranges from 0.8 to 2.4 mm. This shrink sleeve is designed with a slide-on mounting type and features unperforated labels. Each label can be used up to 250 times, with text fields measuring 4mm in height and 60mm in width.
Specifications
Label Color
Yellow
Label Preforations
No Preforations
Marking Printing System
THERMOMARK ROLLMASTER 300-600
Marking Printing System
THERMOMARK X1.2
Marking Print Medium
Roll
Marking Mounting Type
Slide-On
Marking Width
4 mm
Marking Color
Yellow
Manufacturer
Phoenix Contact
MTW Wire Gauge
18-24 Gauge MTW Wire
THHN Wire Gauge
16-24 Gauge THHN Wire
Marking Lettering Field Size
60 mm X 4 mm
Component
Wire Heatshrink Label
Features

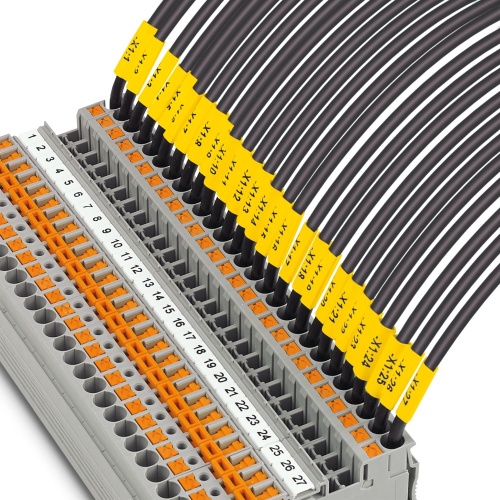

Permanent and captive identification of single-core wires, wires, cables, pneumatic hoses, and other cylindrical objects
Ladder style design: For a good overview and to facilitate quick use, the sleeves are preassembled in cut lengths: 15 mm, 30 mm, or 60 mm
As an option, the sleeves can be shrunk by applying heat manually to fix the sleeve in position
High diameter coverage with a shrink ratio of 3:1
Widely used and proven worldwide in control cabinet and machine building, the oil and gas industry, and the railway industry
