Code: 131163

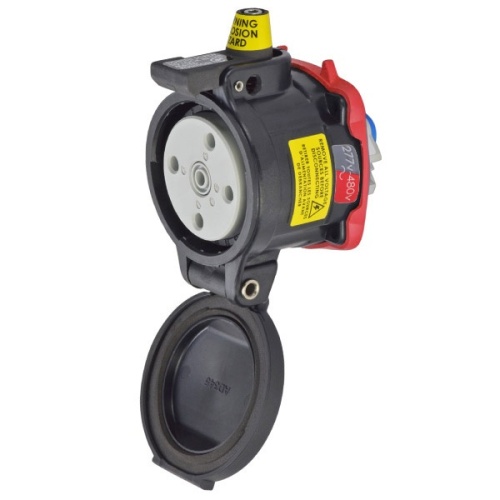

Meltric 35-34047-HAZ Hazardous Location DS30 Receptacle 277/480 VAC 30A Black Poly
Normally In Stock
Meltric 35-34047-HAZ Hazardous Location DS30 Receptacle 277/480 VAC 30A Black Poly 3P+N+G 3 HP,15 HP
Condition: New
Usually Ships Same Day or Next DayMUST ORDER A MINIMUM OF $110 FROM MELTRIC FOR PRODUCT TO SHIP
$793.84
Sale Price
$661.53
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Meltric 35-34047-HAZ Hazardous Location DS30 Receptacle 277/480 VAC 30A Size 3 3P+N+G Black Poly CSA Class I Div 2 Screw Terminal Standard Pawl UL 498,UL 1682
Specifications
Receptacle Amperage
30 Amp
Receptacle Contact Configuration
3P+N+G
Receptacle Color
Black
Receptacle NEMA Type
Type 4X
Receptacle Wiring Connection Type
Screw Terminal
Receptacle HP Rating
3 HP
Receptacle HP Rating
15 HP
Receptacle UL Listing
UL 498
Receptacle UL Listing
UL 1682
Receptacle Pawl Type
Standard Pawl
Receptacle Hazardous Location Rating
CSA Class I Div 2
Receptacle Composition
Poly
Receptacle Min Wire Size
14 AWG
Receptacle Voltage
277/480 VAC
Receptacle Size
Size 3
Receptacle Max Wire Size
4 AWG
Manufacturer
Meltric
Component
Receptacle
Meltric Series
DS30 Hazardous Location
Features
OFF Button Press to de-energize. Provides push button circuit disconnection
Casing Fiberglass reinforced thermoplastic polyamide material offers great resistance to impact, corrosion and harsh environmental conditions.
Lockout-Tagout Provisions Allows plug to be easily locked out and tagged out. Optional Padlock Pawl allows lockout/ tagout of the receptacle.
Silver-Nickel Contact Material Solid silver-nickel contact surfaces provide superior conductivity, durability and corrosion resistance.
Dead Front Safety Shutter Ensures safety by preventing user access to live parts
Lid Provides 3R or Type 4X/IP69/IP69K for additional protection in harsh environments.
Spring-Loaded Butt-Style Contacts Ensures optimal contact force and superior electrical performance over thousands of operations.
Spring Assisted Screw Terminals Patented design ensures “Tighten and Forget” confidence.
