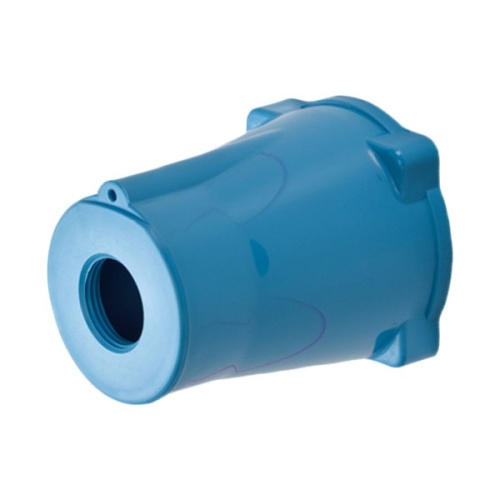

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Meltric 33-98053-S90 Ds100 Inlet Poly Blue Size .5 Type 4X 3P+G 100A 480 Vac 400 Hz Spare Position
Normally In Stock
Code: 131070
Ds100 Inlet Poly Blue Size.5 Type 4X 3P+G 100A 480 Vac 400 Hz Spare Position
Condition: New
Usually Ships Same Day or Next DayMUST ORDER A MINIMUM OF $110 FROM MELTRIC FOR PRODUCT TO SHIP
$677.21
Sale Price
$564.34
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Ds100 Inlet Poly Blue Size.5 Type 4X 3P+G 100A 480 Vac 400 Hz Spare Position
Specifications
Receptacle Composition
Plastic
Receptacle Color
Blue
Receptacle Voltage
480 VAC
Receptacle Contact Configuration
3P+G
Receptacle Amperage
100 Amp
Receptacle NEMA Type
Type 4X
Receptacle Size
Size 5
Manufacturer
Meltric
Component
Inlet
Meltric Series
DS100 Switch-Rated
Features
OFF Button Press to de-energize. Provides push button circuit disconnection
Casing Fiberglass reinforced thermoplastic polyamide material offers great resistance to impact, corrosion and harsh environmental conditions
Lockout-Tagout Provisions Allows plug to be easily locked out and tagged out. Optional Padlock Pawl allows lockout/ tagout of the receptacle.
Silver-Nickel Contact Material Solid silver-nickel contact surfaces provide superior conductivity, durability and corrosion resistance.
Dead Front Safety Shutter Ensures safety by preventing user access to live parts
Lid Provides 3R or Type 4X/IP69/IP69K for additional protection in harsh environments.
Spring-Loaded Butt-Style Contacts Ensures optimal contact force and superior electrical performance over thousands of operations.
Spring Assisted Screw Terminals Patented design ensures “Tighten and Forget” confidence. See pg. 8
